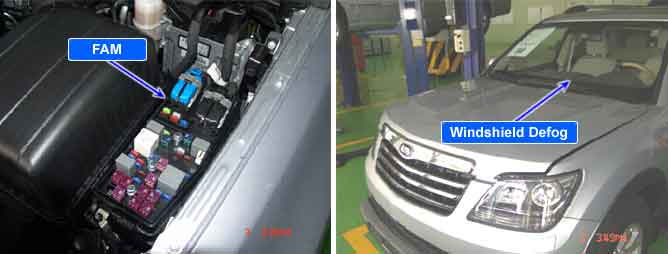

Once IPM receives windshield defog switch working signal, it sends the signal to FAM by CAN communition. FAM performs a defogging function by operating windshield defog relay.
This code is set when FAM detects windshield defog relay not working even thought relay working condition is met. (relay fuse open, faulty relay, faulty relay operating IC)
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
W/Shield Defog Fuse or Relay state check |
•
Windshield Defog Relay Fuse Open |
Enable Conditions |
•
ACC "ON" | |
Threshold Value |
•
It is normal if the voltage of each fuse terminal is above 12V. | |
Diagnostic Time |
•
Immediately | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed. |
