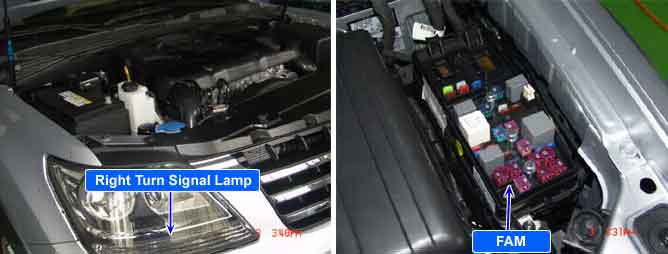

Once IPM receives right turn switch working signal, it sends the signal to FAM by CAN communition. FAM makes right turn signal lamp flickering.
This code is set when right turn signal lamp circuit is shotted to ground for more than 150ms during right turn signal lamp operating.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Load Mornitoring |
•
Poor connection
•
Short to ground in right turn signal lamp circuit
•
Faulty right turn signal lamp
•
Faulty FAM |
Enable Conditions |
•
IG KEY ON. | |
Threshold Value |
•
It is abnormal if output voltage is 0V. | |
Diagnostic Time |
•
Immediately | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed. |
