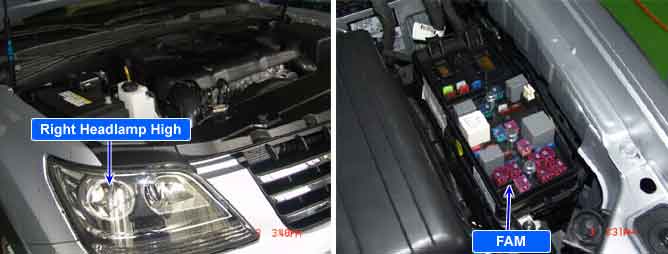

Once IPM receives right headlamp high switch working signal, it sends the signal to FAM by CAN communition. FAM turns on right headlamp high.
This code is set when right headlamp high circuit is open for more than 150ms during right headlamp high operating.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Load Mornitoring |
•
Poor connection
•
Open in right headlamp high circuit
•
Faulty right headlamp high
•
Faulty FAM |
Enable Conditions |
•
IG KEY ON. | |
Threshold Value |
•
It is normal if output voltage is 12V. | |
Diagnostic Time |
•
Immediately | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed. |
