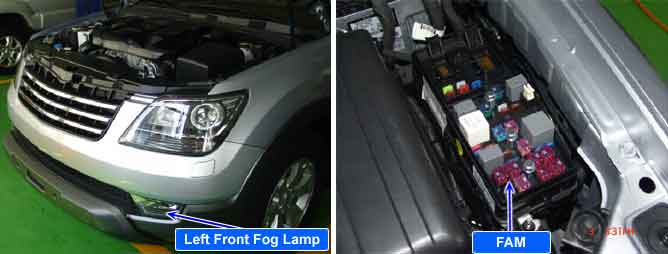

Once IPM receives fog lamp switch working signal, it sends the signal to FAM by CAN communition. FAM turns on fog lamp.
This code is set when left front fog lamp circuit is shortted to ground for more than 150ms during left front fog lamp operating.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Load Mornitoring |
•
Poor connection
•
Short to ground in left front fog lamp circuit
•
Faulty left front fog lamp
•
Faulty FAM |
Enable Conditions |
•
IG KEY ON. | |
Threshold Value |
•
It is abnormal if output voltage is 0V. | |
Diagnostic Time |
•
Immediately | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed. |
