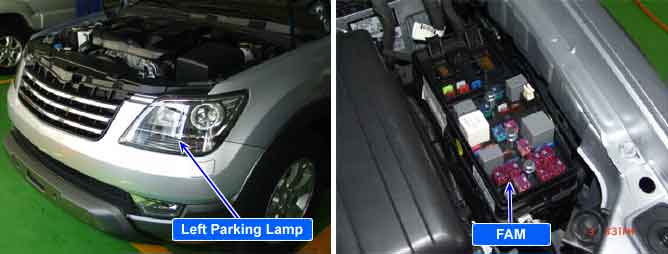

Once IPM receives parking lamp switch working signal, it sends the signal to FAM by CAN communition. FAM turns on parking lamp.
This code is set when left parking lamp circuit is open for more than 150ms during left parking lamp operating.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Load Mornitoring |
•
Poor connection
•
Open in left parking lamp circuit
•
Faulty left parking lamp
•
Faulty FAM |
Enable Conditions |
•
IG KEY ON. | |
Threshold Value |
•
It is normal if output voltage is 12V. | |
Diagnostic Time |
•
Immediately | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed. |
