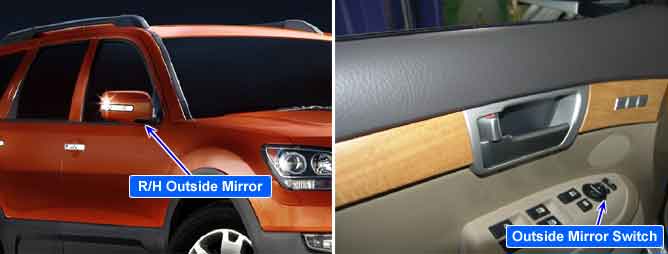

Assist Mirror is controlled by pressing direction switch (UP, DOWN, LEFT, RIGHT) with IG ON after
Assist Mirror is selected by Power Window Main Switch.
ADM sets DTC when there is no movement signal from positioning sensor in assist mirror.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Current Detection at Horizontal Driving Motor IC in Assist Mirror |
•
Short to ground in Horizontal Driving motor circuit
•
Faulty Driving Motor |
Enable Conditions |
•
Not in START position with IGN Key
•
200mS after START position with IGN Key
•
Motor works on | |
Threshold Value |
•
Current detected over 2.5A at Horizontal Driving Motor IC in Assist Mirror | |
Diagnostic Time |
•
Immediately (DTC status memorized) | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed (In case of the past error, perform DTC erasing procedure.)
•
Disconnecting battery cable |

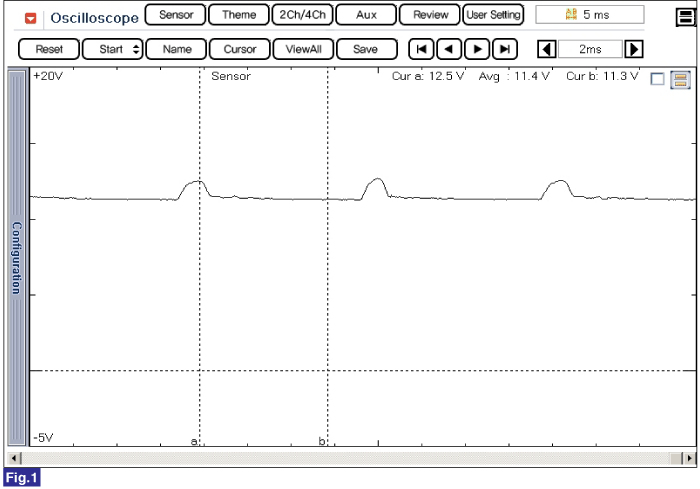

Fig 1) Signal Waveform of Horizontal motor/sensor of Assist mirror
