3.
Select "P,N" range and Confirm the "starter relay" parameter on the scan tool.

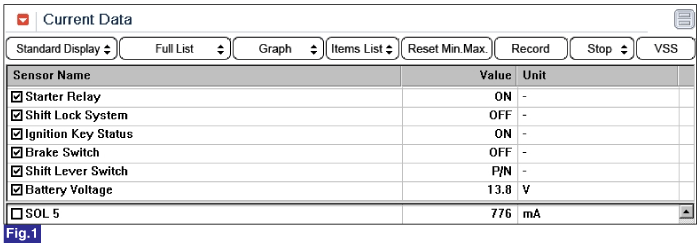

Fig 1) Inhibitor s/w P/N in "P" position : ON

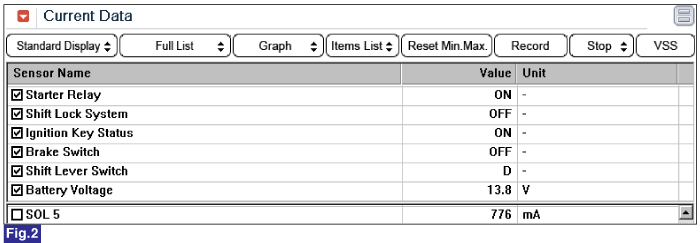

Fig 2) Inhibitor s/w D in "D" position : OFF
Connect scantool to Diagnostic Connector.
Ignition "ON" & Engine "OFF".
Select "P,N" range and Confirm the "starter relay" parameter on the scan tool.
Fig 1) Inhibitor s/w P/N in "P" position : ON
Fig 2) Inhibitor s/w D in "D" position : OFF
Is normal operation in "P/N" position ?
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or TCM(PCM)'s connector or was repaired and TCM(PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure |
 | ▶ Substitute with a known-good FAM and check for proper operation. 1. If the operation is normal, then Replace FAM and go to "Verification Vehicle Repair" procedure. 2. If operation is abnormal, then perform the "Component inspection" procedure. |
