4.
Monitor "VGT ACTUATOR" parameter on the GDS
Specification : Operating range : 9~95 %. (80% at Idle)

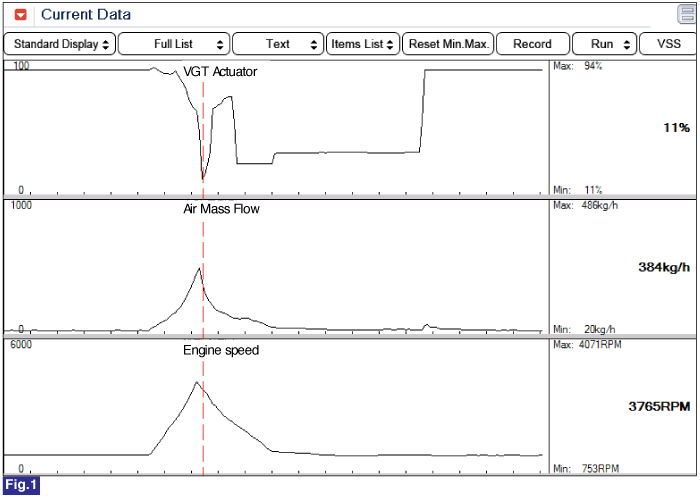

Fig.1) VGT Actuator at Acceleration.
Connect GDS with 'DATA LINK CONNECTOR'(DLC).
Warm engine up to normal operating temperature.
Turn all the electrical devices including air conditioner OFF.
Monitor "VGT ACTUATOR" parameter on the GDS
Specification : Operating range : 9~95 %. (80% at Idle)
Fig.1) VGT Actuator at Acceleration.
