4.
Accelerate the Engine speed until about 2000 rpm in the 3rd gear.
Specification : INPUT SPEED - (OUTPUT SPEED × 3rd GEAR RATIO) ≥ 200 RPM
※ It is difficult to do "STALL TEST" in 3rd gear, therefore Go to "Signal Check" as follow
Connect Scantool.
Engine "ON" .

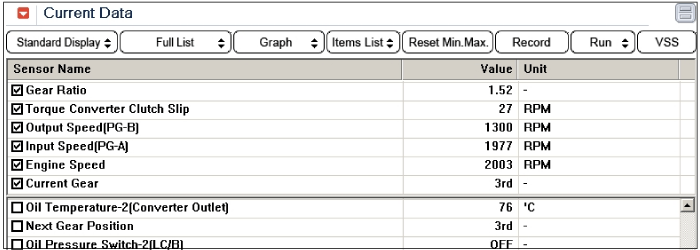

Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scantool.
Accelerate the Engine speed until about 2000 rpm in the 3rd gear.
Specification : INPUT SPEED - (OUTPUT SPEED × 3rd GEAR RATIO) ≥ 200 RPM
Does "INPUT & OUTPUT SPEED SENSOR" within specifications?
 | ▶ Go to "Component Inspection" procedure. |
 | ▶ Check for electrical niose of circuit in INPUT & OUTPUT SPEED SENSOR or Replace INPUT & OUTPUT SPEED SENSOR. Repair as necessary and Go to "verification of vehicle repair" procedure. |
