Connect scantool to data link connector(DLC)
Engine "ON" .
Monitor the "I/C SOLENOID" parameter on the scantool.
Select "D RANGE" and Operate the vehicle.
Check "I/C SOLENOID" parameter value changes while driving.
Specification : Changeable correspondence with each gear postion

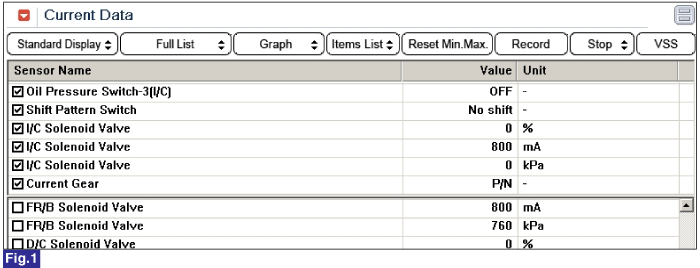

Fig 1) "P" range

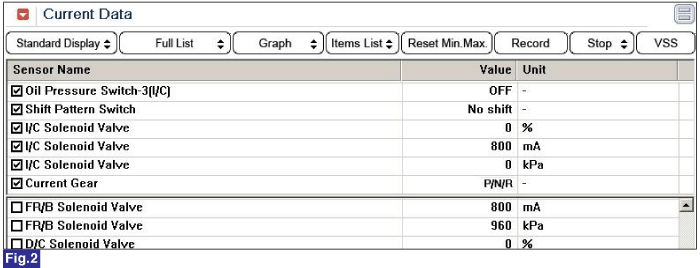

Fig 2) "R" range
Fig 3) "N" range
Fig 4) 1st gear in "D" range
Fig 5) 2nd gear in "D" range

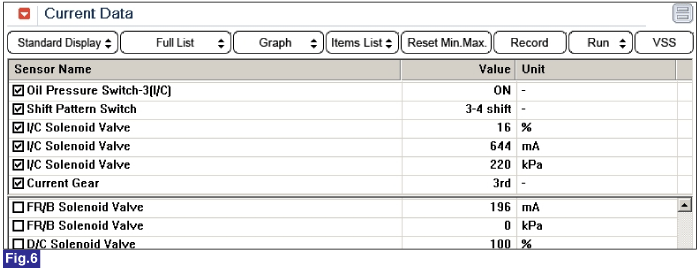

Fig 6) 3rd gear in "D" range
Fig 7) 4th gear in "D" range
Fig 8) 5th gear in "D" range
Does the "Shift Control Solenoid Valve" follow the reference data ?
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "verification of vehicle repair" procedure. |
 | ▶ Go to "W/Harness Inspection" procedure. |
