4.
Drive the vehicle over 40 Km/h.
Specification : Increasing Gradually
Fig 1) "P,N" range
Fig 2) "R" range
Fig 3) "D" range 1st gear
Fig 4) "D" range 2nd gear
Fig 5) "D" range 3rd gear
Fig 6) "D" range 4th gear
Fig 7) "D" range 5th gear
Connect scantool to data link connector(DLC).
Engine "ON" .
Monitor the "INPUT SPEED SENSOR" parameter on the scantool
Drive the vehicle over 40 Km/h.
Specification : Increasing Gradually

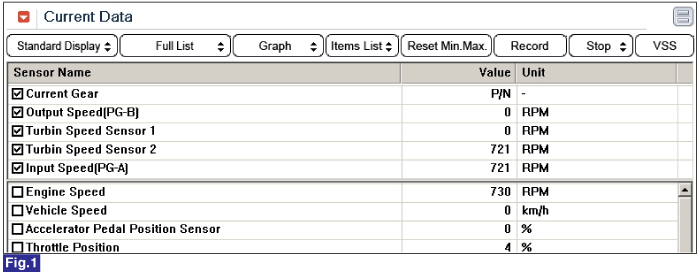

Fig 1) "P,N" range

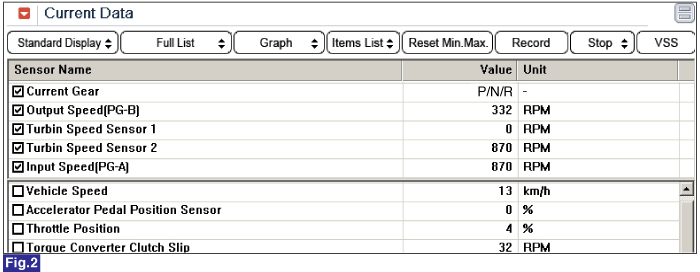

Fig 2) "R" range

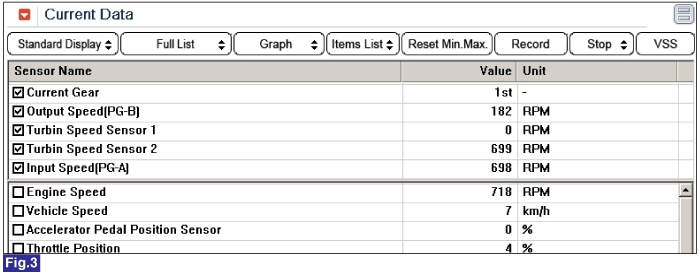

Fig 3) "D" range 1st gear
Fig 4) "D" range 2nd gear

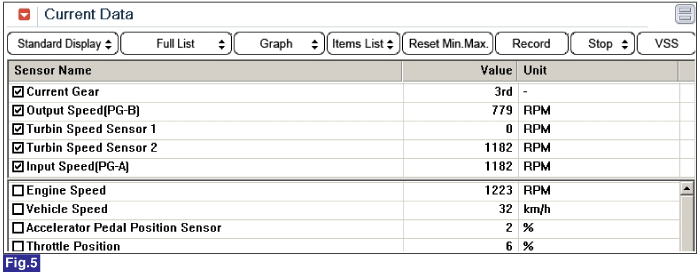

Fig 5) "D" range 3rd gear
Fig 6) "D" range 4th gear
Fig 7) "D" range 5th gear
Does "INPUT SPEED SENSOR " follow the reference data?
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "verification of vehicle repair" procedure. |
 | ▶ Go to "W/Harness Inspection" procedure. |
