Connect GDS to Data Link Connector(DLC).

Ignition "ON" & Engine "ON".

Driving 1st speed to 8th speed at D-range.

Selet "Currnet Data"mode and monitor "Shift Control Solenoid Valve(6/C-VFS)" parameter current value.

Fig 1) "P" range

Fig 2) "R" range

Fig 3)"N" range

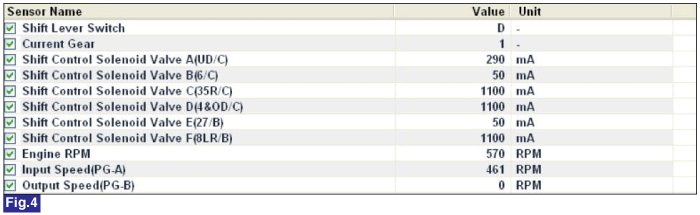

Fig 4) "D" range 1st gear

Fig 5) "D" range 2nd gear

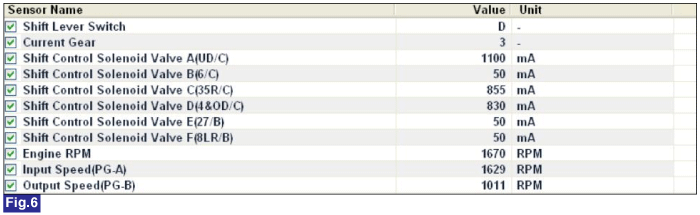

Fig 6) "D" range 3rd gear

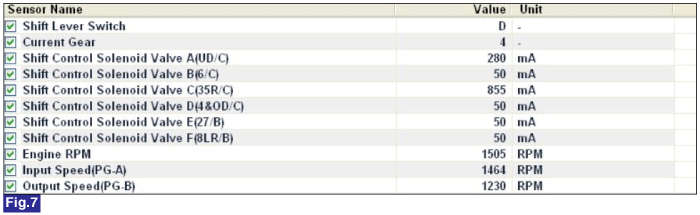

Fig 7) "D" range 4th gear

Fig 8) "D" range 5th gear

Fig 9) "D" range 6th gear

Fig 10) "D" range 7th gear

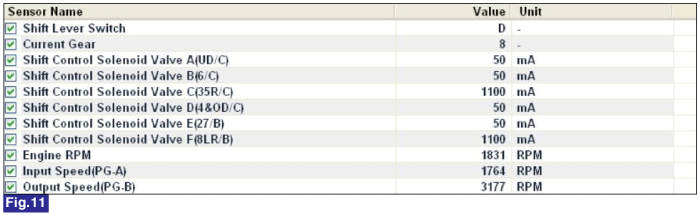

Fig 11) "D" range 8th gear

Is Shift Control Solenoid Valve(6/C-VFS) within specification?

	▶ Fault is intermittent caused by poor contact of PCM/TCM & sencor and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "Verification Vehicle Repair" procedure.
	▶ Go to "Terminal and Connector Inspection" procedure.
