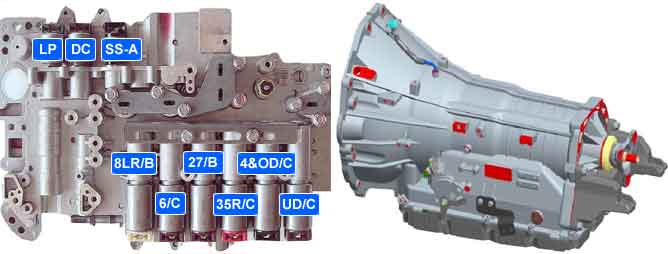

Component Location
General Description

PCM/TCM control Damper clutch perpomence by supplied oil pressue.

Damper clutch is for fuel reduction by decreasing oil pressue component's resistance in T/C.

DTC Description

This code is set when circuit open or short detected by PCM/TCM.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

•

Check ability(Torque converter is opened & sticked)

※ Torque converter clutch : TCC

1.

Circuit open or short

2.

TCC solenoid fault

3.

PCM/TCM

Enable Conditions

•

Baterry voltage > 10V

•

10V < Solenoid supplied power < 16V

Threshold value

•

Hardware IC check

Detecting Time

•

More than 0.2sec & 2D/C

Fail safe

•

Locked into 5th gear

Diagnostic Circuit Diagram
