4.
Engine speed up to about 2000rpm and check Input speed&Output speed are within specific at 6th speed of gear.
Specification : 2nd~8th :ㅣInput speed sensor-Output speed sensor X Gear ratio| ≥ 200rpm
Connect GDS to Data Link Connector(DLC).
Ignition "ON" & Engine "ON".

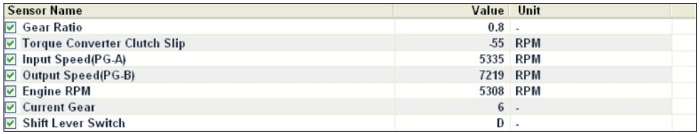

Selet "Currnet Data"mode and monitor "Engine speed, Input speed sensor, Output speed sensor and Gear position" parameter used select option.
Engine speed up to about 2000rpm and check Input speed&Output speed are within specific at 6th speed of gear.
Specification : 2nd~8th :ㅣInput speed sensor-Output speed sensor X Gear ratio| ≥ 200rpm
Are measured Input speed&Output speed within specifiction?
 | ▶ Go to "Component Inspection" procedure. |
 | ▶ Check there are electrical nosie at Inout/output speed and Repair as necessary and go to "Verification Vehicle Repair" procedure. |
