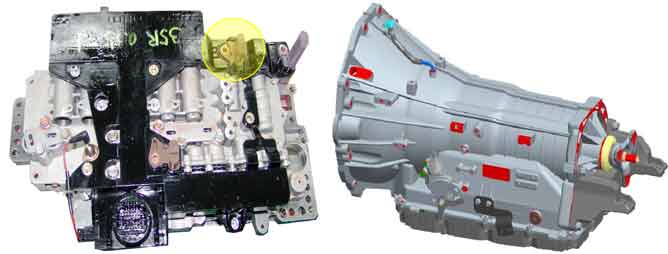

Middle speed sensor is one body and installed in transmission. It's used hall sensor of an electric current type, and current is changed by magnetic variation. Each sensors are composite 2 pins and PCM/TCM supplied power to sensor and controled by PCM/TCM.
This code is set when vehicle speed is above 20km/h but middle speed signal is not detected by middle speed sensor.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Monitoring voltage range(Circuit open/short check) | 1. Signal citcuit open/short 2. Power supplied citcuit open/short 3. Middle speed sensor 4. PCM/TCM |
Enable Conditions |
•
Battery voltage > 10V
•
Engine speed ＞400rpm
•
TR switch = "D"range or Sports mode | |
Threshold value |
•
Middle speed = 0rpm | |
Detecting Time |
•
More than 4sec & 2 D/C | |
Fail safe |
•
Locked into 5th gear
•
Sports mode 2 <-> 3 <-> 4 <-> 5 possible
•
Teaching not allow |
Middle speed sensor
Under 1000RPM, Output waveform is 60 or 120µs(ON time) by shaft of rotation
Over 1000RPM, Output waveform is 30µs(ON time)
