Connect GDS to Data Link Connector(DLC).
Ignition "ON" & Engine "ON".
Driving 1st speed to 8th speed at D-range.
Selet "Currnet Data"mode and monitor "ON/OFF Solenoid Valve" parameter current value.
Specification : See below data
Fig 1) "P,N" range
Fig 2) "R" range

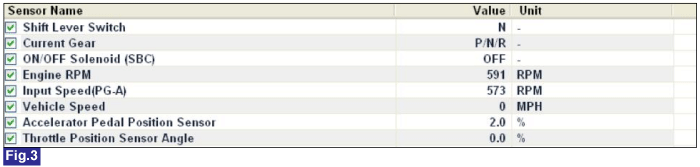

Fig 3) "N" range

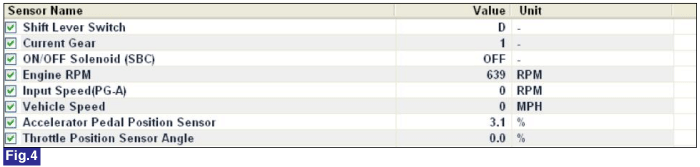

Fig 4) "D" range 1st gear
Fig 5) "D" range 2nd gear

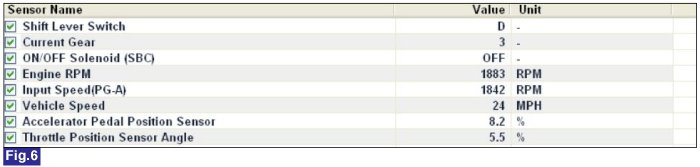

Fig 6) "D" range 3rd gear
Fig 7) "D" range 4th gear
Fig 8) "D" range 5th gear
Fig 9) "D" range 6th gear

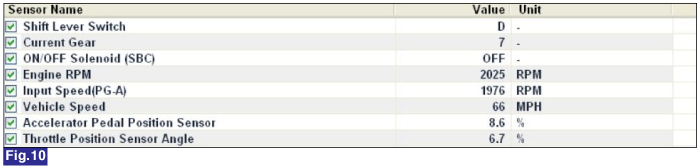

Fig 10) "D" range 7th gear

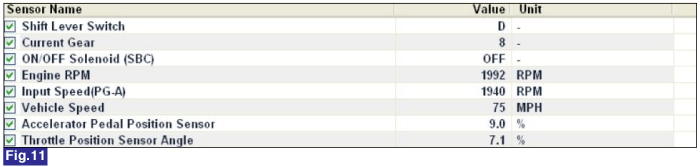

Fig 11) "D" range 8th gear
Is ON/OFF Solenoid Valve within specification?
 | ▶ Fault is intermittent caused by poor contact of PCM/TCM & sencor and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "Verification Vehicle Repair" procedure. |
 | ▶ Go to "Terminal and Connector Inspection" procedure. |
