Monitor Scantool Data
1.

Connect scan tool to data link connector(DLC), Ignition "ON"

2.

Erase DTC and Engine "ON"

3.

Monitor the "Current Gear, Target Gear, solenoid valves" parameter on the scan tool.

4.

Select "D" range and Drive vehicle, confirm output data of solenoid valves.

Solenoid valve operating status according to gear position

gear

position

ON SOL.

SOL.1

SOL.2

SOL.3

SOL. 4

SOL. 5

SOL. 6

P

OFF

48mA

848mA

48mA

48mA

-O-

OFF

R

OFF

48mA

48mA

48mA

48mA

-O-

OFF

N

OFF

48mA

848mA

48mA

48mA

-O-

OFF

D1

OFF

848mA

848mA

48mA

48mA

-O-

-O-

D2

OFF

848mA

848mA

848mA

848mA

-O-

-O-

D3

OFF

848mA

48mA

48mA

848mA

-O-

-O-

D4

ON

848mA

848mA

48mA

48mA

-O-

-O-

D5

ON

48mA

48mA

48mA

48mA

-O-

-O-

D6

ON

48mA

848mA

848mA

48mA

-O-

-O-

-O- : variable control

Fig 1) Lock-up status of Torque convertor clutch in 3rd gear.

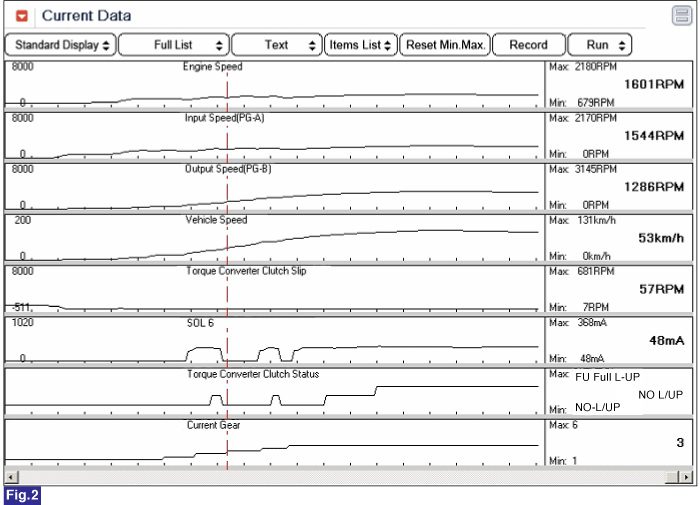

Fig 2) Release the Lock-up at 3rd to 4th gear shifting

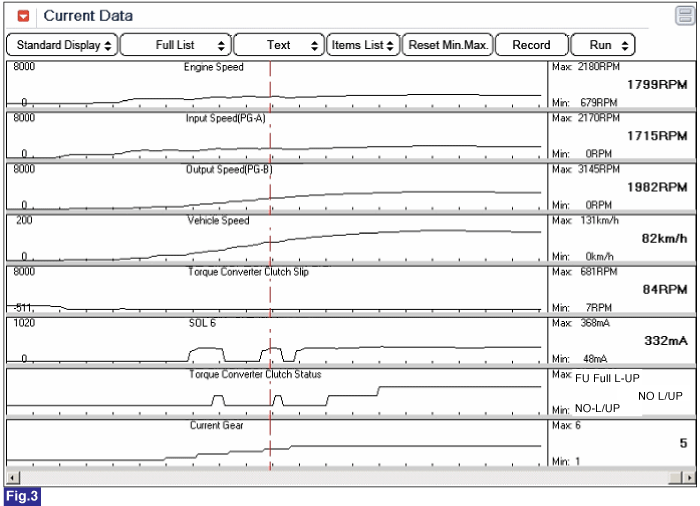

Fig 3) Release the Lock-up status in 5th gear

Fig 4) Lock-up status in 5th gear

Fig 5) Lock-up status in 6th gear

5.

Does "TCC solenoid valve(SOL 6)" operated normally ?

▶ Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "verification of vehicle repair" procedure

▶ Go to "Component Inspection" procedure
