Monitor Scantool Data
1.

Connect scan tool to data link connector(DLC), Ignition "ON"

2.

Erase DTC and Engine "ON"

3.

Monitor the "ON/OFF solenoid valve(SOL 7)" parameter on the scan tool.

4.

Select "D" range and Drive vehicle, confirm output data of solenoid valve.

Specification : 1st, 2nd, 3rd gear : OFF 4th, 5th 6th gear : ON

Solenoid valve operating status according to gear position

gear

position

ON SOL.

SOL.1

SOL.2

SOL.3

SOL. 4

SOL. 5

SOL. 6

P

OFF

48mA

848mA

48mA

48mA

-O-

OFF

R

OFF

48mA

48mA

48mA

48mA

-O-

OFF

N

OFF

48mA

848mA

48mA

48mA

-O-

OFF

D1

OFF

848mA

848mA

48mA

48mA

-O-

-O-

D2

OFF

848mA

848mA

848mA

848mA

-O-

-O-

D3

OFF

848mA

48mA

48mA

848mA

-O-

-O-

D4

ON

848mA

848mA

48mA

48mA

-O-

-O-

D5

ON

48mA

48mA

48mA

48mA

-O-

-O-

D6

ON

48mA

848mA

848mA

48mA

-O-

-O-

-O- : variable control

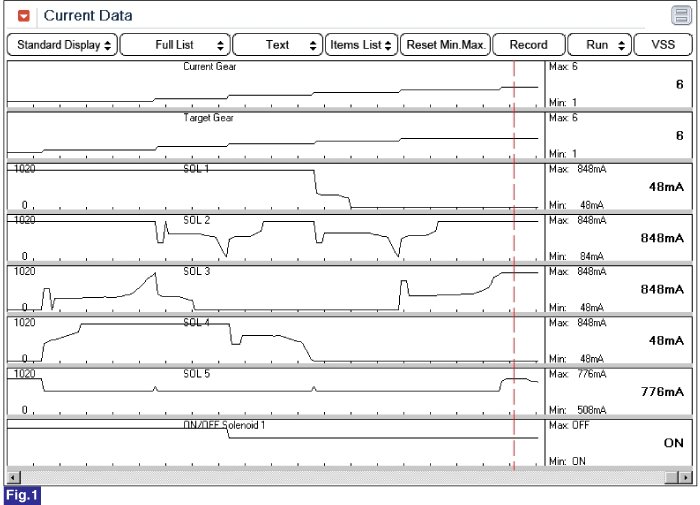

Fig 1) ON/OFF Solenoid valve - 4th, 5th, 6th gear

5.

Dose "ON/OFF solenoid valve(SOL 7)" operated normally ?

▶ Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "verification of vehicle repair" procedure

▶ Go to "Component Inspection" procedure
