4.
Select "D" range and Drive vehicle, confirm output data.

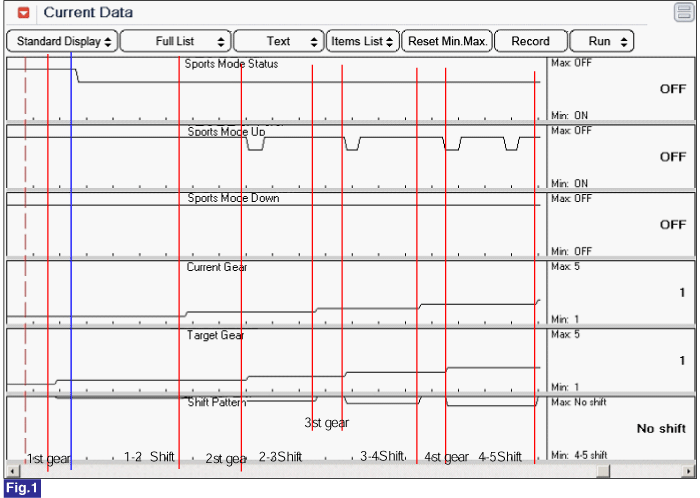

Fig 1) sports mode1

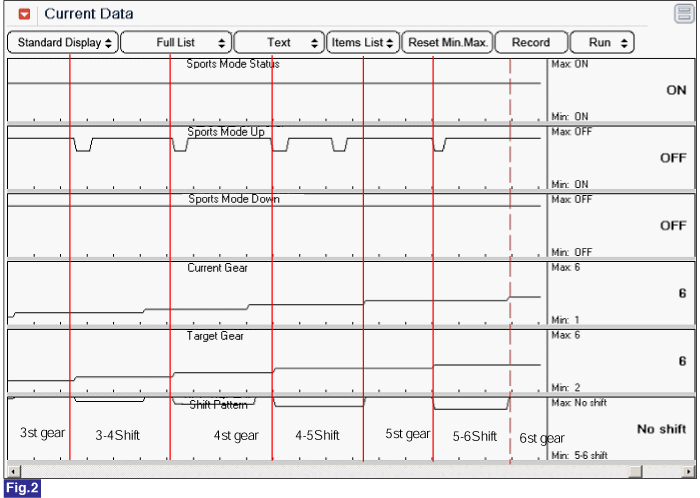

Fig 2) sports mode2
Connect scan tool to data link connector(DLC), Ignition "ON"
Erase DTC and Engine "ON"
Monitor the "Sports mode, Sports mode up-s/w, Sports mode down-s/w" parameter on the scan tool.
Select "D" range and Drive vehicle, confirm output data.
Fig 1) sports mode1
Fig 2) sports mode2
Is "Sports mode" operation normally ?
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "verification of vehicle repair" procedure |
 | ▶ Go to "Wiring circuit Inspection" procedure |
