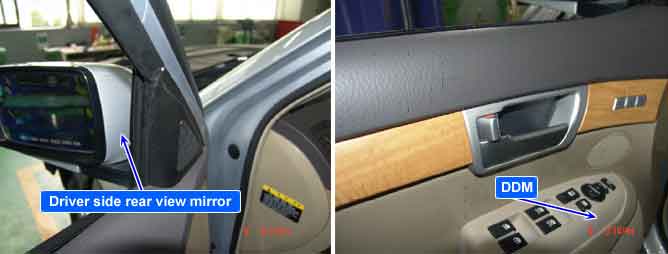

L/H Mirror is controlled by pressing direction switch (UP, DOWN, LEFT, RIGHT) with IG ON after L/H Mirror is selected by Power Window Main Switch.
DDM sets DTC when there is no movement signal from positioning sensor in drive outside rear view mirror.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Current detection at vertical driving motor IC |
•
Short to ground in vertical driving motor of driver side outside mirror
•
Faulty Driving motor |
Enable Conditions |
•
Not in START position with IGN Key
•
200mS after START position with IGN Key
•
Motor works on | |
Threshold Value |
•
Current is detected over 2.5A at Horizontal Driving Motor IC in Driver side Mirror | |
Diagnostic Time |
•
Immediately (DTC status memorized) | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed (In case of the past error, perform DTC erasing procedure.)
•
Disconnecting battery cable |
Fig 1) Signal Waveform of Vertical motor/sensor of Driver side rear view mirror
