Component Inspection
■ Check mirror motor
1.

Connect GDS

2.

IG "ON" & ENG "OFF"

3.

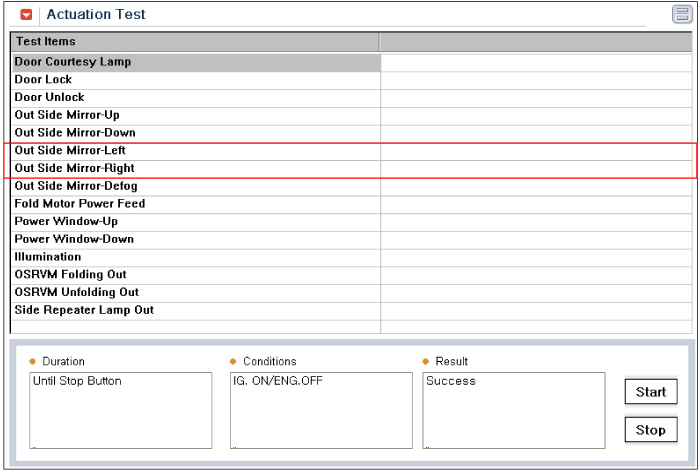

Select "Actuation Test" mode.

4.

Execute "LH Outside Mirror (LEFT, RIGHT)" test.

Specification : Turned to pressed direction

5.

Is motor working normal ?

▶ Go to "W/Harness Inspection" procedure.

▶ Go to next procedure.

■ Check switch
6.

IG "ON" & ENG "OFF"

7.

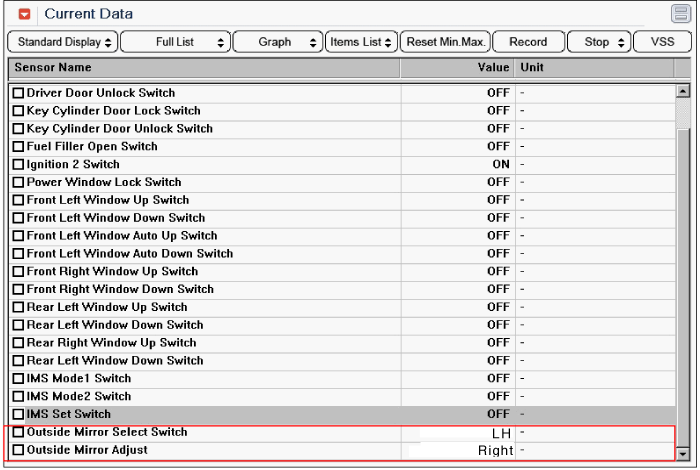

After connect GDS, select "Current Date" menu.

8.

Check whether "Drive Mirror Switch-Left" is turned to "Left or Right" when the control switch is pressed. (LEFT, RIGHT)

Specification : Service data is switched. (Left ↔ Right)

9.

Is the service data normal?

▶ Go to "Terminal and Connector Inspection" procedure.

If control line and power line from DDM are normal, replace an drive mirror motor(L/H).

If control line is normal, but power line from DDM is abnormal, replace a DDM.

▶ Substitute with a known - good component and check for proper operation.

If the problem is corrected, replace the component and go to "Verification of Vehicle Repair" procedure.
