Monitor GDS Data
1.

Connect GDS with 'DATA LINK CONNECTOR'(DLC).

2.

Warm engine up to normal operating temperature.

3.

Turn "OFF" electrical devices and A/C.

4.

Monitor "E/GAS TEMP. PRE VGT","E/GAS TEMP. PRE DPF" parameter on the GDS.

Specification :

"E/GAS TEMP." is displayed.

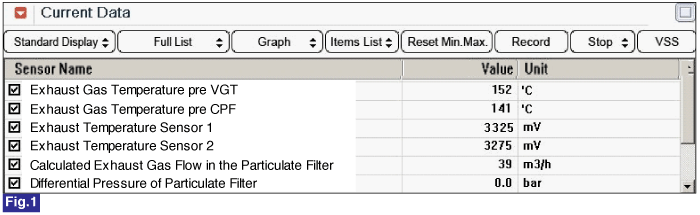

Fig.1) "EXHAUST GAS TEMP." at idle is shown. Monitor if abnormall difference between "Fig.1) data" and the data from the vehicle to test.
