The ALS is the abbreviation for "Auto Leveling System". This ALS system automatically controls the height of a vehicle level according to road condition. So it improves riding comfort and steering stability.
When the vehicle leveling is performed, the compressor presses the air and makes it into high-pressure air. And it is supplied to each air-spring. For controlling the height of a vehicle, the ALS ECU controls each valve and the air is charged into each airspring or a reservoir.
The ALS ECU monitors the air spring valve which is connected to the air spring for a normal operation and if it is detected as a fault in the valve, this DTC is set.
Item | Detecting Condition | Possible cause |
DTC Strategy |
•
Monitoring the air spring valve |
•
Open or Short in the air spring valve circuit
•

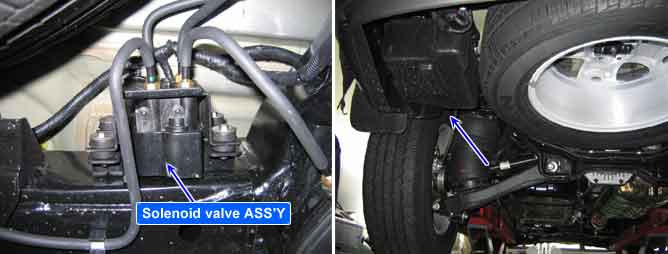

Faulty air spring valve(inside solenoid valve ASS'Y) |
Threshold value |
•
Short to battery side: When the valve is ON, the battery voltage is detected for more than 0.2 second.
•
Open/ Short to ground side: When the valve is OFF, the zero voltage is detected for more than 0.2 second. | |
Fail-Safe |
•
The level control of a vehicle is Inhibited.
•
The warning lamp is activated. |
