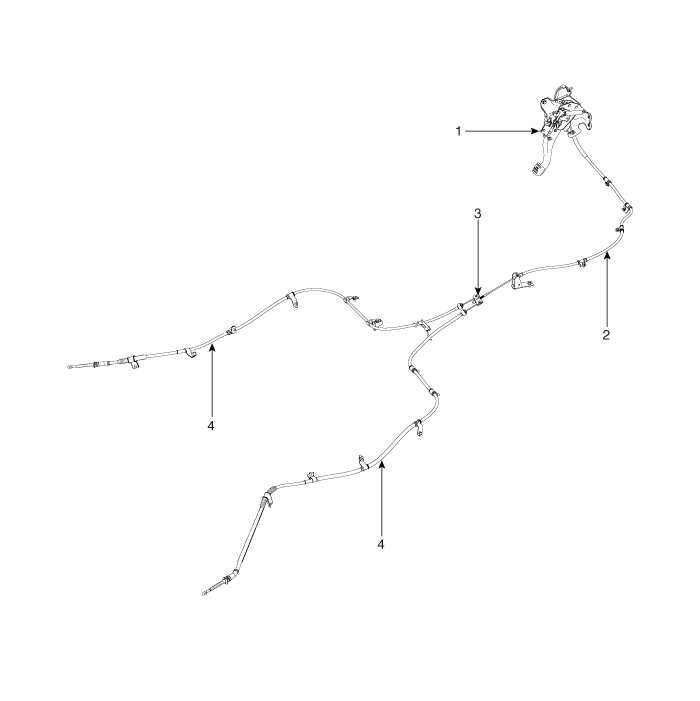

Components (1)

1. Parking brake pedal

2. Front parking brake cable

3. Equalizer assembly

4. Rear parking brake cable

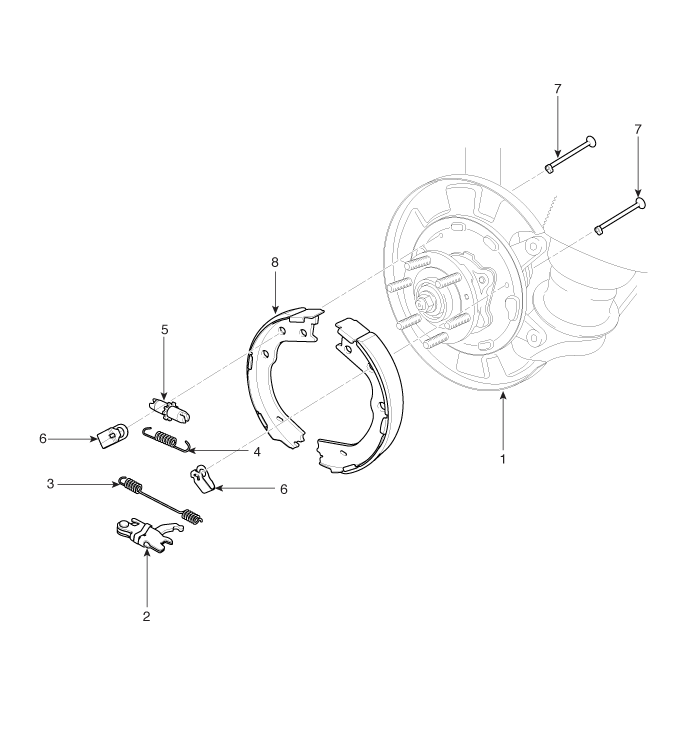

Components (2)

1. Backing plate

2. Operating lever

3. Upper spring

4. Lower spring

5. Adjuster

6. Shoe hold down spring

7. Shoe hold down pin

8. Parking brake shoe
