3.
Installation is the reverse of removal.
note
●
Replace and damaged clips.
When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

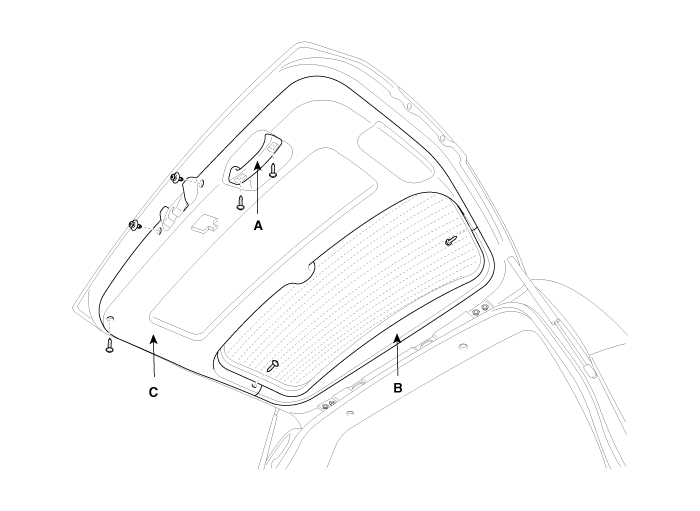

Remove the upper trim (B) and handle (A).
After loosening the screws the remove the tailgate trim (C).
Installation is the reverse of removal.
Replace and damaged clips.
Remove the tailgate trim.
Disconnect the latch connector (A), actuator connector (B).
After loosening the mounting screws, remove the latch assembly (A).
After loosening the mounting nuts, remove the actuator assembly (A).
After loosening the mounting screws, remove the cover (A).
Disconnect the cable (A).
Installation is the reverse of removal.
Make sure connectors are connected properly and the connecting rod is connected properly.
Make sure the tailgate opens properly and locks securely.
Using a screwdriver (A), lift the socket clips (B) up slightly on both ends of the lifter (D), and then remove the lifter from the bracket (C).
Push the socket of the lifter into the bracket for installation.
Do not apply sealant to the body.
Remove the tailgate weather strip (A).
Installation is the reverse of removal.

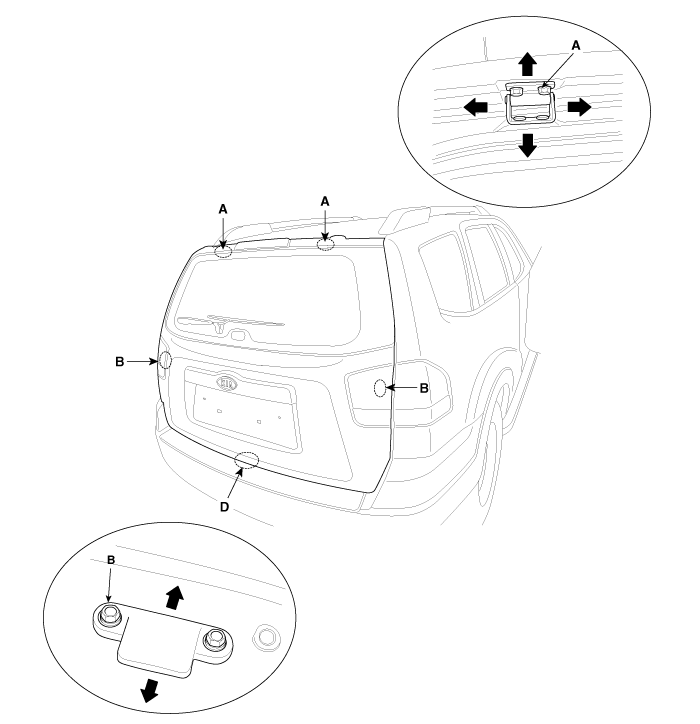

After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up or down, or right or left.
Adjust the tailgate fit by turning the tailgate over slam bumper and side bumper (B).
Adjust the striker (D) by moving it up or down, or right or left.
