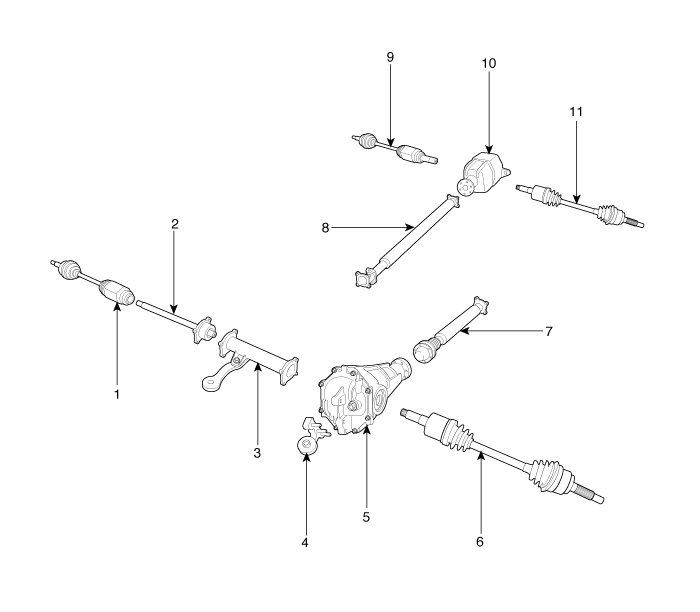

1. Front driveshaft (RH)

2. Output shaft & bearing assembly

3. Output shaft housing assembly

4. Diff mounting bracket

5. Front differential carrier assembly

6. Front driveshaft (LH)

7. Front propeller shaft

8. Rear propeller shaft

9. Rear drive shaft (RH)

10. Rear differential carrier assembly

11. Rear drive shaft (LH)

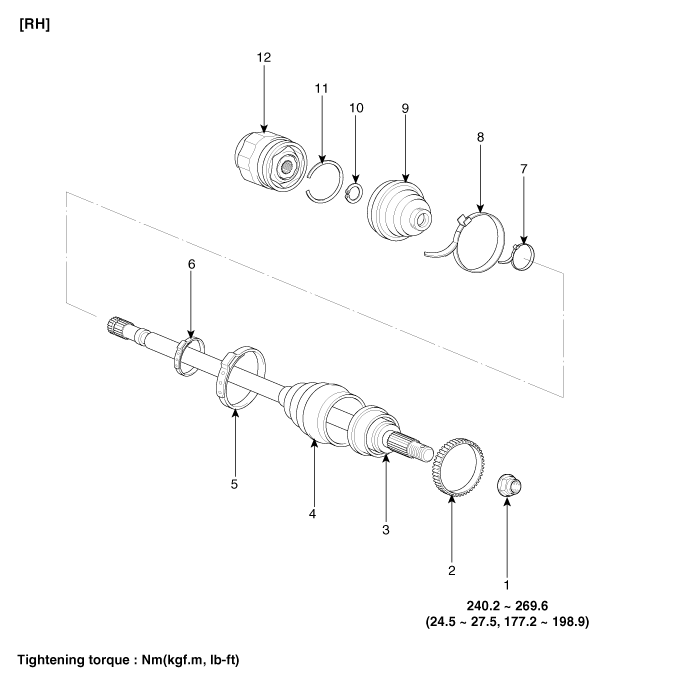

1. Drive shaft nut

2. Dust cover

3. BJ assembly

4. BJ boots

5. BJ boot band

6. BJ boot band

7. TSJ band

8. TSJ band

9. TSJ boot

10. Snap-ring

11. Circlip

12. TSJ assembly

13. Circlip

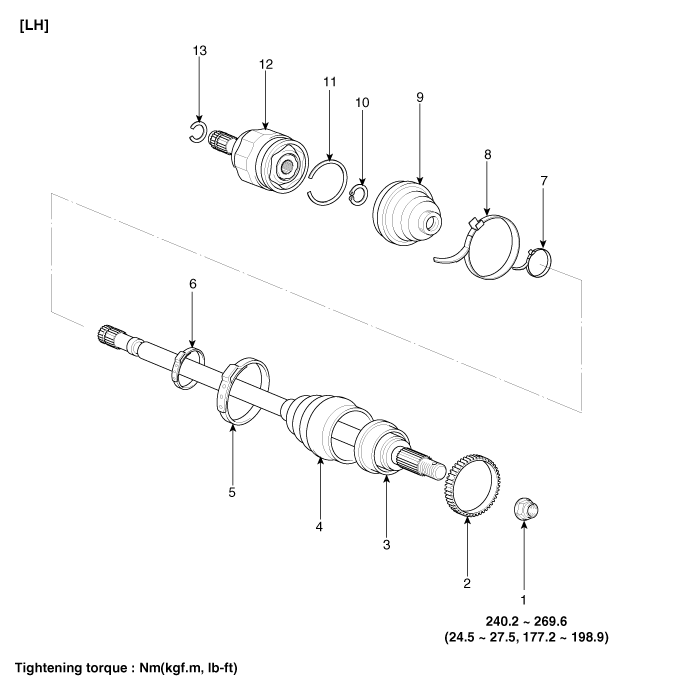

1. Drive shaft nut

2. Dust cover & tone ring

3. BJ assembly

4. BJ boots

5. BJ boot band

6. BJ boot band

7. TSJ band

8. TSJ band

9. TSJ boot

10. Snap-ring

11. Circlip

12. TSJ assembly
