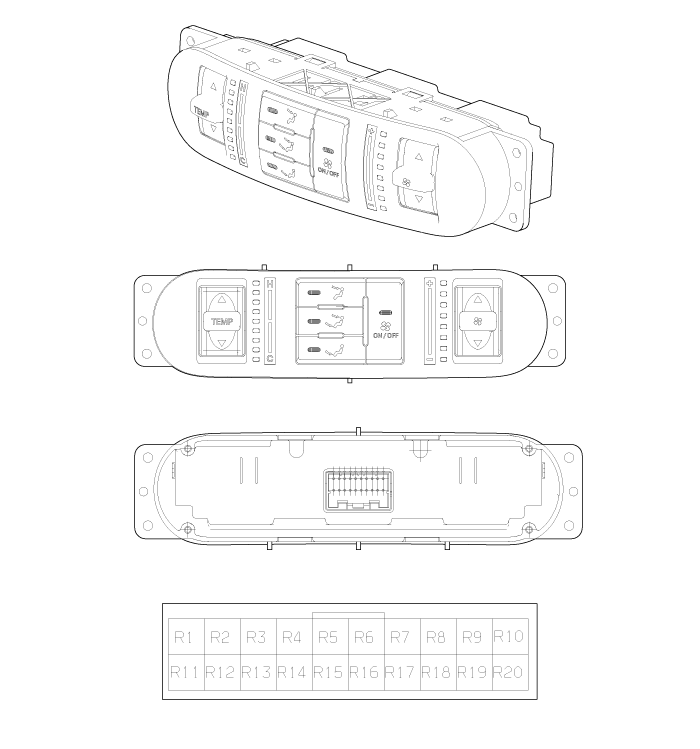

Connector | Pin | Function |
Connector (A) | 1 | Battery |
2 | Tail lamp | |
3 | IG2 | |
4 | Power mosfet (G) | |
5 | Blower motor standard | |
6 | Vref (5V) | |
7 | - | |
8 | Temp actuator(cool) | |
9 | Rheostat | |
10 | GND | |
11 | Front comm(K-line) | |
12 | Mode actuator (vent) | |
13 | Power mosfet (D) | |
14 | Temp actuator f/back | |
15 | Mode actuator f/back | |
16 | - | |
17 | Mode actuator(def) | |
18 | Temp actuator(warm) | |
19 | - | |
20 | Sensor GND |
