Inspection
1.

Ignition "ON".

2.

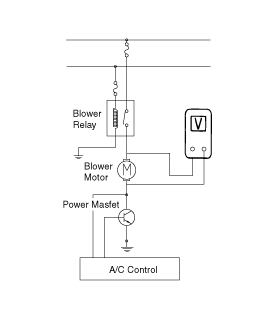

Manually operate the control switch and measure the voltage of blower motor between pin 1 and 2.

3.

Operater the blower motor control and measure the voltage output.

Fan

Voltage

Manual

First speed

4.0 ± 0.5V

Second speed

5.1 ± 0.5V

Third speed

6.2 ± 0.5V

Fourth speed

7.3 ± 0.5V

Fifth speed

8.4 ± 0.5V

Sixth speed

9.5 ± 0.5V

Seventh speed

10.5 ± 0.5V

eighth speed

Battery(+)

*AUTO COOLING : Auto speed (4.5V~B+)

*AUTO HEATING : Auto speed (4.5V~10.5V)

Replacement
1.

Disconnect the negative (-) battery terminal.

2.

Remove luggage side trim.

3.

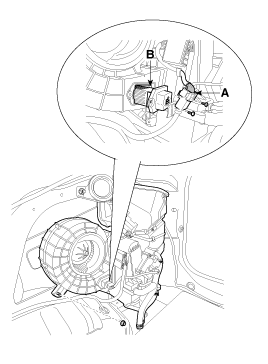

Disconnect the power mosfet connector (A).

4.

Remove the power mosfet (B) after loosening the mounting screws.

5.

Installation is the reverse order of removal.
