1.
Measure the pressure of high pressure line by voltage output between NO.1 and NO.2 terminals
Measure the pressure of high pressure line by voltage output between NO.1 and NO.2 terminals
Inspect the voltage value whether it is sufficient to be regular value or not.
Voltage = 0.00878835 * Pressure + 0.37081095 [PSIA]
If the measured voltage value is not specification, replace the A/C pressure transducer.
Disconnect the negative (-) battery terminal.
Recover the refrigerant with a recovery/charging station.

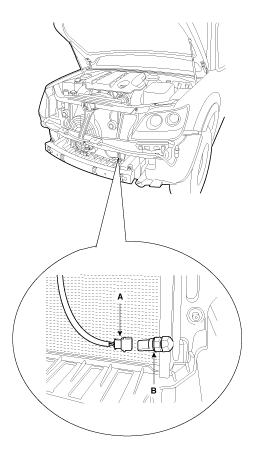

Disconnect the A/C pressure switch connector (A) and then remove the A/C pressure transducer (B).
Take care that liquid & suction pipe are not bent.
Installation is the reverse order of removal.
TORQUE : 10~12N.m (1.0~1.2kgf.m, 7.4~8.8lbf.ft)
