Description

Variable Intake Manifold (VIS) Valve is installed on the intake manifold. It combines or divides the two banks’ intake air passages to improve intake efficiency in accordance with the ECM control signal calculated by engine operating condition.

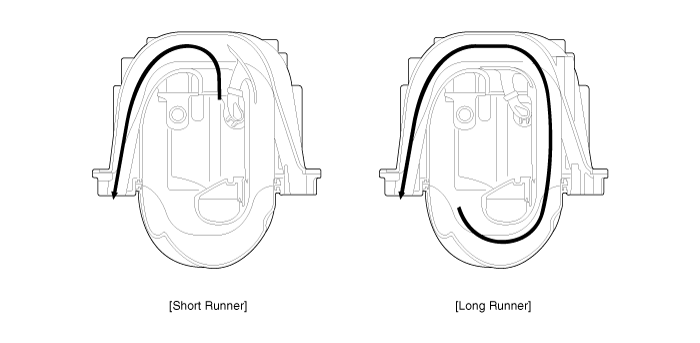

[The operation section of VIS valve]

VIS Valve

Air Passage

Effect

Open

Short Runner

Improvement in power

Close

Long Runner

Improvement in Low/Middle speed torque
