Remove the seat control switch.

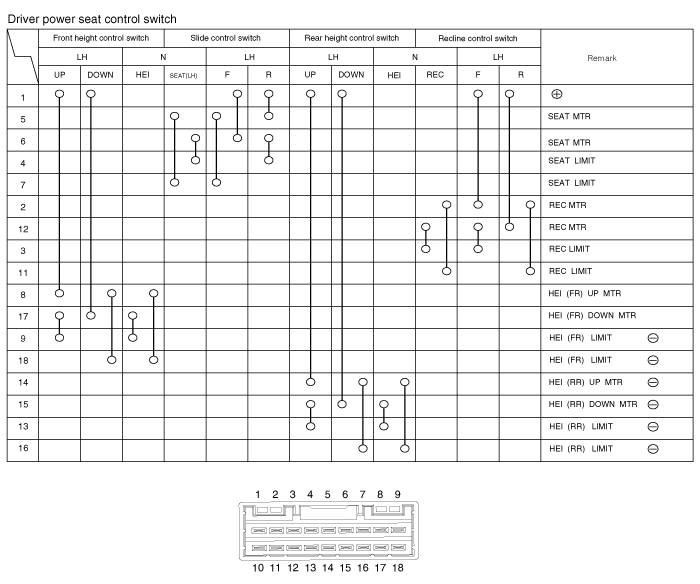

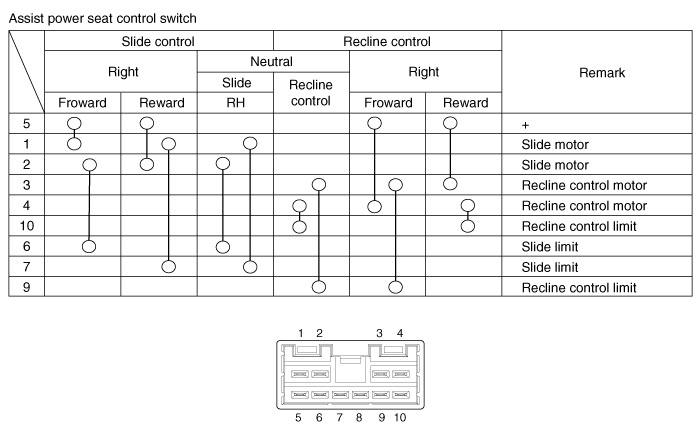

With the power seat control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat control switch.

Disconnect the negative (-) battery terminal.

Remove the seat front cover (A).

(Refer to the Body group-front seat)

Loosen the power seat control switch (A) mounting screws (3EA) and disconnect the connector.

Connect the connectors and reassemble the power seat control switch.

Reassemble the front seat cover.
