Two manual operations (up and down) for four p/windows. However, on the driver's seat the auto up/down operation must be possible.

Manually operating the mirror position by the manual switch (Up, Down, Right, and Left)

Saving and replacing the mirror position by RKE → For 2 persons

Out side mirror auto reverse operation

Out side mirror fold/unfold power control

Central door lock/unlock function

Door courtesy lamp control

Out side mirror defog control

Illumination control

Outside mirror turn signal lamp control.

According to the input at DR as window manual up/down, RL window manual up/down, RR window manual up/down Switch of the SW ASSY P/WDW main, the inputted signal will be sent out (ADM, RAM) through CAN Communication. Simultaneously, DDM will send out manual up/down, auto up/down signal.

(message : AD Window Motor Ctrl, RLD Window Sw Sts, RRD Window Sw Sts)

Driver Door Window control :

It is a message from IPM. (Message : After run Ctrl).

Under the condition "IGN ON -> IGN OFF", Power Window SW Control Function lasts for "30 sec". But, it immediately terminates to OFF when front door is opened.

Drive door and assist door apply to, In condition of IGN2 On or After Run Ctrl (CAN) On Door door is controlled by DDM, assist door is controlled by CAN message (message :AD Window Ctrl)

P/WDW main SW (DDM) control signal of down, auto up, auto down.

P/Window enable signal on condition

up/down control signal

* P/WINDOW TIMER(FROM IPM) OFF & IGN2(DDM ITSELF) OFF, independently of Switch’s state UP SIGNAL and DOWN SIGNAL are OFF state preservation

(1)

Auto/Manual Up Output(Signal) Operation Time Chart(T1:40mS ± 10mS)

(2)

Auto/Manual Down Output(Signal) Operation Time Chart(T1:40mS ± 10mS)

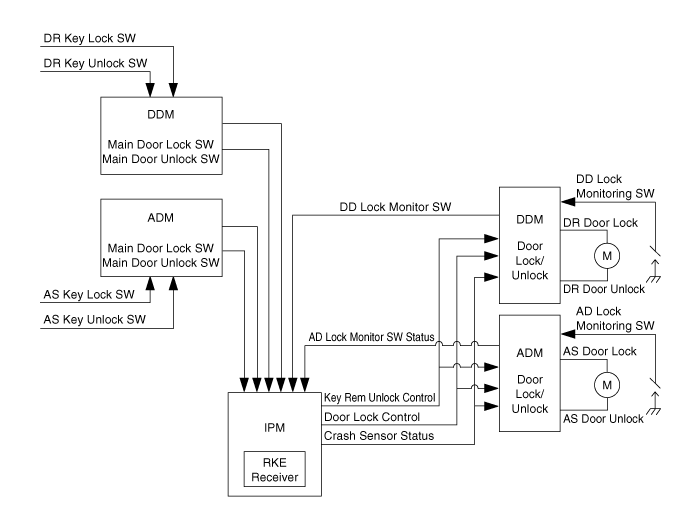

Lock/unlock controlled by can message from IPM

(message : Door Lock Ctrl , Key Remember Unlock Ctrl, Crash Sensor Sts)

If Door Lock monitoring switch is "Lock" or "Unlock", DD Lock monitor SW Sts message is sent to "Locked" or "Unlocked".

Lock changes to unlock or unlock changes to lock, there will be delay time for 100ms.(controlled by IPM)

If Central door lock/unlock Sw is "on", driver door lock Sw Sts message is sent to lock/unlock.

If Key cylinder lock switch is "on", driver door key cylinder Sw Sts message is sent to lock.

If Key cylinder unlock switch is "on", driver door key cylinder Sw Sts message is sent to unlock.

If door lock Ctrl message from IPM is "driver door lock, driver door and assist door lock, rear door, tailgate and driver door lock, lock all", door lock actuator is locked for O.5sec.

If door lock Ctrl message from IPM is "driver door unlock, driver door and assist door unlock, rear door, tailgate and driver door unlock, unlock all", or lock actuator is unlocked for O.5sec.

Under the condition "IGN ON", if Crash Sensor Sts message from IPM is ON, Door UNLOCK makes output.(5 ± 0.5sec)

Remained action goes on irrespective of OFF signal of Crash Sensor Sts message.

Door Lock can't make output until IGN is OFF during or after Crash Action.

After Crash UNLOCK, Driver Door Key Cylinder Sw Sts and Driver Door Lock Sw Sts data are not sent to LOCK though key cylinder lock Sw and main door lock Sw is on until IGN is "OFF".

Unlock action is done again after 100ms if any door is still locked after Crash UNLOCK.

If Crash Sensor Sts message is sent on door, unlock action will be generated until IGN is “OFF”

If the vehicle is under any condition of the followings, all doors is locked.

If message from IPM is (Door Lock Ctrl = LOCK_ALL), it will be locked for 0.5sec.

Apply when Auto Door Lock function exists

If the vehicle is under any condition of the followings, all doors will be unlocked.

If message from IPM is (Door Lock Ctrl = UNLOCK_ALL), it will be unlocked for 0.5sec.

If door is locked by using door lock knob after opening door while IGN Key is inserted to Key Cylinder, Unlock output will be for 1sec (IPM sends Key Remember Unlock Ctrl message to Long Unlock) and there will be a series of three outputs every 0.5sec if door condition is "Lock".

(IPM sends Key Remember Unlock message to Short Unlock)

If condition is unlocked during a series of three outputs, output will be stopped.

LOCK/UNLOCK by Key fob is run by Door Lock Ctrl message from IPM.

Operation in DDM is identical with Central Door Lock/Unlock.

If the priority is the low, it'll be ignored.

Priority is same under any condition.

1st Crash unlock

2nd Auto door lock ( Auto door unlock )

3rd Key reminder unlock

4th Central door lock/unlock

If there is equal output command during output Priority order same Door lock/unlock, input ignore. if there is contrast output command during output Priority order same Door lock/unlock, input ignore and present output immediately discontinue and executes output that is inputted after 100 ms(except CRASH UNLOCK, Without waiting TIME 100 ms immediately action enforcement)

If there is a signal which has priority over existing action, it will be stopped Immediately and the signal makes its own action.

When was new output condition after existing output completion, send output after wait 100 ms by standard existing output completion point of time.(except CRASH UNLOCK, Without waiting TIME 100 ms immediately action enforcement)

Manual Control for O/S Mirror LH

Manual Control for O/S Mirror RH

If the position switch (POS1 or POS2) within 5 seconds after the memory switch (‘SET’ SW) is pushed at the ON state of the IGN2 (the switch module shall send the state signal through can), the present mirror position shall be memorized. (The 5-second duration from the ON state of the memory switch is the memory allowance period so that the allowance state shall be released if the 5 second duration is passed. That is, if the position switch (POS1 or POS2) is ON during the memory allowance period, and then the present position shall be memorized.) Except, when the mirror manual switch at the LH is operated, the mirror position at RH shall not be memorized.

Inhibiting and releasing of saving mode may be carried out when any of following conditions is satisfied:

If the battery is removed, the memory must be cleared. (only position data)

In IGN On (IGN State = On) or Driver door opened or during 30 seconds after Driver door open to close when IGN Off Condition (It used IMS Main signal), if user press the position button, Outside Mirror is play to memorized position

The position switch (position1 and position2) that has not been saved yet cannot perform replacing.

If the user presses a position switch (position1 or position2) during replacing operation, the recently pressed switch will be prior to the other.

Replacing Prohibition Conditions

If the Fold switch in the SW ASSY P/WDW main is operated on B+ condition

Assist O/S Mirror control for CAN message (message : OSRVM Fold Ctrl)

In condition of The first, fold button realize “FOLD”

IN condition of IGN=RUN and ALT_L=ON, if Rear Defogger SW is “ON”, send on Rear Defogger Ctrl message of IPM, DDM/ADM turn on the O/S Mirror Defog.

If Rear Defogger SW is “off”, send on Rear Defogger Ctrl message of IPM, DDM/ADM turn off the O/S Mirror Defog.

The priority order is CAN message.

Saving and reminder operation Of the following conditions is satisfied

Push on the set sw, it transmits IMS Memory Commend message with the SET.

Push on the POSITION1/2 SW within 5 seconds after push on the set sw, it transmits IMS Memory Commend message of MEMORY1 or MEMORY2.

Push on the POSITION1/2 SW after 5 seconds after push on the set sw, it transmits IMS Memory Commend message of RETURN1 or RETURN 2.

when not operating set, memory, return, it transmits IMS Memory Commend message of passive

In condition of OFF or ACC (during drive door open or for 30 seconds after drive door close),

Push on the position sw 1/2, it transmits IMS Memory Commend message of RETUEN1 or RETUEN 2.

Above 10 seconds Push on the set sw constantly, it transmits after changing IMS Auto SW message.

When sending Park Tail Head Lamp Ctrl Message by off or DRL ON in IPM, ILLUMINATION output is turned off.

When sending Park Tail Head Lamp Ctrl Message by PARK TAIL ON or PARK LOW TAIL ON in IPM, ILLUMINATION output is turned on.

When a driver's seat door opens, DDM sends Driver Door Courtesy Lamp Ctrl Message on by RAM, and turns on Courtesy lamp.

When a driver's seat gate is closed, Driver Door Courtesy Lamp Ctrl Message is sent in OFF_DECAY, and, DDM Courtesy lamp, it's exposed to light (2 ± 0.2, sec).

When a driver's seat gate is closed, Driver Door Courtesy Lamp Ctrl Message will be sent in OFF_DECAY, and when Message ON during exposure to light forwards DDM Courtesy lamp, Courtesy lamp is turned on immediately.

IGN 'RUN' during exposure to light be, and when closing door in the IGN 'RUN' state, please send by Driver Door Courtesy Lamp Ctrl Message off. and turns off Courtesy lamp immediately

When 20 minutes pass in the state which opened, a driver's seat door sends Driver Door Courtesy Lamp Ctrl Message off by Key reminder SW OFF, and DDM will turn off Courtesy lamp immediately.

When being exposed to light, when the resolution is exposed to light beyond 32step, you aren't supposed to shake.

All subordinate's output is off, and SW related to WAKE - UP is by the state that everything is off. When SC Message in CAN IPM forwards everything to S (Sleep) in the off state, enters SLEEP MODE.

WAKE-UP related SW is same as the bottom.

The above 2) when effective input also occurs in SW of whole one item, WAKE-UP will be immediately.

When sending WAKE-UP Message from other MODULE, WAKE-UP will be immediately.

It's done within 2 mA of blackout kinds.

※ IMS SET, IMS 1,IMS 2 SW will be WAKE UP by change of state. But The SW state is on, WAKE UP continues only in case of, and WAKE UP will be off in case of, and the SW state will enter in the SLEEP

The condition to enter RESCUE MODE seems to be the next.

When entering RESCUE MODE, It moves as the next.

When Inhibit Sw Sts message is OFF/ACC or IGN SW is off and CAN Line abnormality from IPM, FAM, RAM is not, Park Tail Head Lamp Ctrl, Front Wiper Ctrl, Driver Door Courtesy Lamp Ctrl Message isn't INVALID, released in RESCUE MODE.
