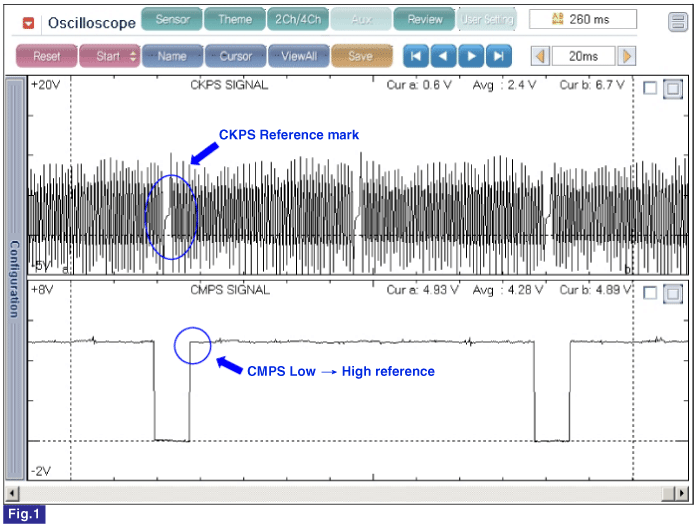

Fig.1) This shows waveform of CKPS and CMPS simultaneously. The middle area indicates reference points of CKPS and CMPS.

☞ Injection sequence is determined based on Low and High signal of CMPS reference point as detecting cylinder position.
