1.
Remove the oil filter cap.
(1)
Using a wrench(32mm or equivalent), loosen the oil filter cap slowly. Be careful not to drop engine oil because the oil filter paper is removed with its cap at this moment.
Check the engine oil quality. Check the oil deterioration, entry of water, discoloring of thinning. If the quality is visibly poor, replace the oil.
Check the engine oil level.
After warming up the engine and then 5 minutes after the engine stop, oil level should be between the “L” and “F” marks in the dipstick.
If low, check for leakage and add oil up to the “F” mark.
Do not fill with engine oil above the “F” mark.
ACEA classificaton : With DPF-C3, Without DPF-B4
API classificato: CH-4 above

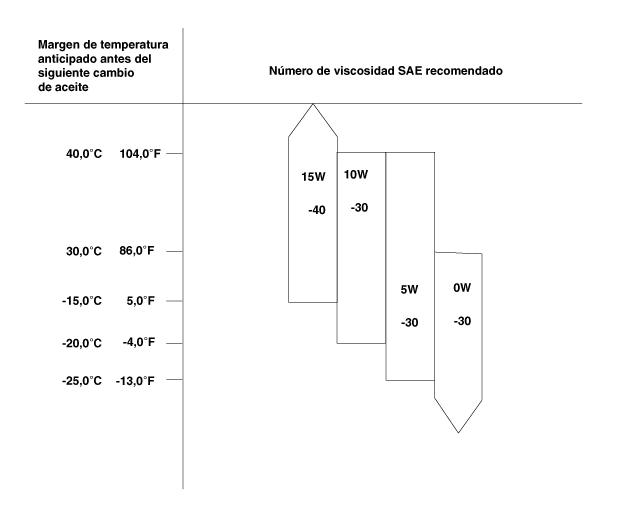

SAE viscosity grades : Refer to the recommended SAE viscosity number
For best performance and maximum protection of all types of operation, select only those lubricants which :
Satisfy the requirement of the ACEA, API classification.
Have proper SAE grade number for expected ambient temperature range.
Lubricants that do not have both an SAE grade number and ACEA service classification on the container should not be used.
The ACEA certified engine oil is required as a service engine oil. Only in case that ACEA certified engine oil is not available, the API certified engine oil (API CH-4 or above) is allowed restrictively.
Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
Exercise caution in order to minimize the length and frequency of contact of your skin to used oil. Wear protective clothing and gloves. Wash your skin thoroughly with soap and water, or use water-less hand cleaner, to remove any used engine oil. Do not use gasoline, thinners, or solvents.
In order to preserve the environment, used oil and used oil filter must be disposed of only at designated disposal sites.
Remove the oil filter cap.
Using a wrench(32mm or equivalent), loosen the oil filter cap slowly. Be careful not to drop engine oil because the oil filter paper is removed with its cap at this moment.
Remove the oil filter paper (A) and its O-ring (B) from its cap.
Remove the filter paper assembly (A).
Replace the filter paper assembly and O-ring (B) with new ones which is supplied as a service kit and do not reuse the O-ring removed.
Assemble the oil filter cap with the filter fixed.
Tightening torque :
24.5N.m (2.5kgf.m, 18.1lb-ft)
Opening the oil filler cap and removing the oil pan drain plug, drain engine oil thoroughly.
Reassemble the drain plug (A) with a new gasket. Do not reuse the gasket removed.
Tightening torque :
34.3 ~ 44.1N.m (3.5 ~ 4.5kgf.m, 25.3 ~ 32.5lb-ft)
Fill new engine oil.
Capacity
Total : 7.8 L (8.24 US qt, 6.86 lmp qt, 2.05 US. gal.)
Oil pan : 6.4 L (6.76 US qt, 5.62 lmp qt, 1.62 US. gal.)
Drain and refill including oil filter : 7.4 L (7.81 US qt, 6.50 lmp qt, 1.95 US. gal.)
Fill a half oil of the total amount first and do the rest again after about one minute later.
Do not fill oil over the 'F' line, checking the level with the oil level gauge.
Start engine and check for oil leaks.
Recheck the engine oil level.
