Connect GDS to Data Link Connector(DLC).

Ignition "ON" & Engine "ON".

Selet "Currnet Data"mode and monitor "Input speed sensor" parameter.

Driving above 20 Km/h.

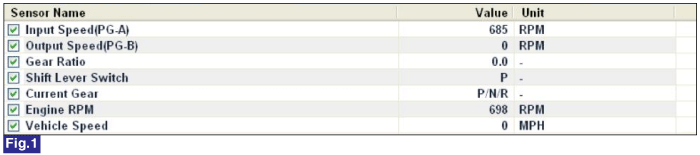

Fig 1) "P" range

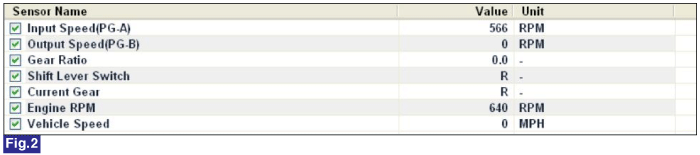

Fig 2) "R" range

Fig 3) "N" range

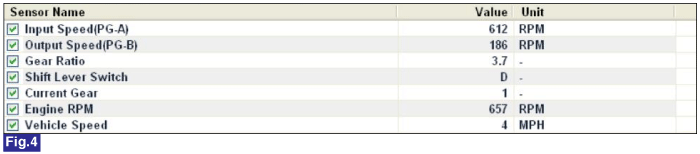

Fig 4) "D" range 1st

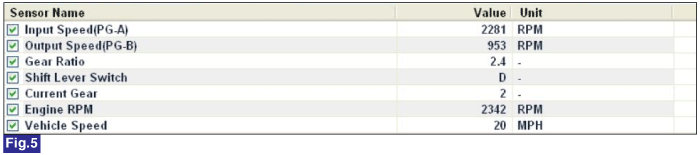

Fig 5) "D" range 2nd

Fig 6) "D" range 3rd

Fig 7) "D" range 4th

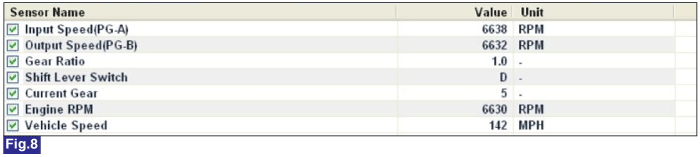

Fig 8) "D" range 5th

Fig 9) "D" range 6th

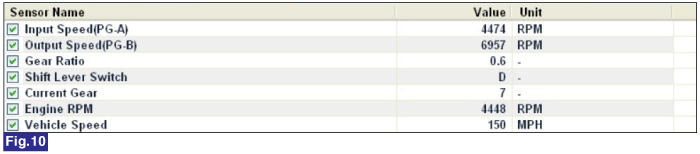

FIG 10)"D" range 7th

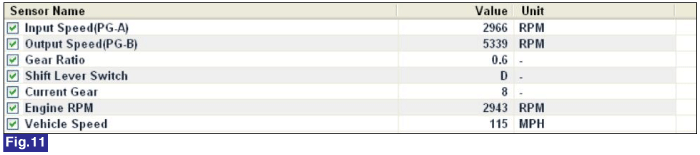

FIG 11)"D" range 8th

Is measured "Input speed sensor" value within specification?

	▶ Fault is intermittent caused by poor contact between TCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "Verification Vehicle Repair" procedure.
	▶ Go to "Terminal and Connector Inspection" procedure.
