4.
Input specification frequency to signal of Input speed sensor by simulation mode.

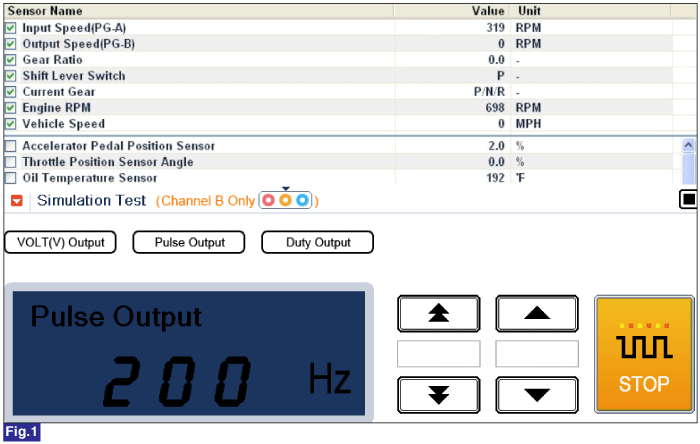

Fig 1) Input 200Hz → 319rpm
Fig 2) Input 300Hz → 480rpm
※ The values are subject to change according to vehicle model or conditions.
Ignition off & Engine Off.
Disconnect "ATM solenoid valve connector.
Connect GDS to Data Link Connector(DLC) and select Simulation mode.
Input specification frequency to signal of Input speed sensor by simulation mode.
Fig 1) Input 200Hz → 319rpm
Fig 2) Input 300Hz → 480rpm
※ The values are subject to change according to vehicle model or conditions.
Is measured Input speed sensor value changed by input frequency?
 | ▶ Substitute with a known-good Input speed sensor and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Substitute with a known-good PCM/TCM and check for proper operation.If the problem is corrected, replace PCM/TCM and then go to "Verification of Vehicle Repair" procedure. |
