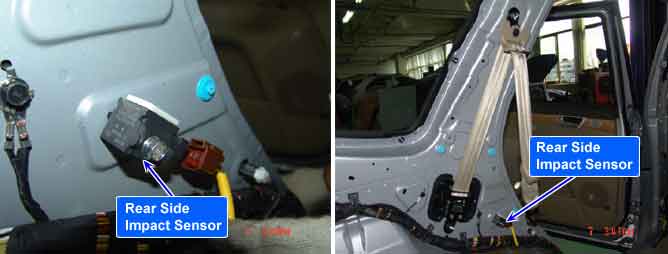

Rear Side Impact Sensor(RSIS) is located in both side of rear seat back panel detects rear side collision.
When RSIS delivers collision signal to SRSCM, SRSCM checks whether safing sensor located in SRSCM detects collusion. and if both RSIS and safing sensor detects collision simultaneously, SRSCM operates rear side air bag.
The SRSCM sets DTC B1452 if there is short to power harness in RDSIS harness.
Item | Detecting Condition | Possible cause | |
DTC Strategy |
•
Check voltage |
•
Short to power in RDSIS harness.
•
Faulty RDSIS.
•
Faulty SRSCM. | |
Enable Conditions |
•
Ignition "ON" | ||
Threshold Value |
•
RDSIS no acceleration data, and line voltage >11V | ||
Diagnostic Time | Qualification |
•
Ini(Start Up):0.2s (100ms x 2)
•
Steady:500μs x 8 + 2.2s (2 times) | |
De-Qualification |
•
Ini(Start Up):1 time
•
Steady:1 time | ||
