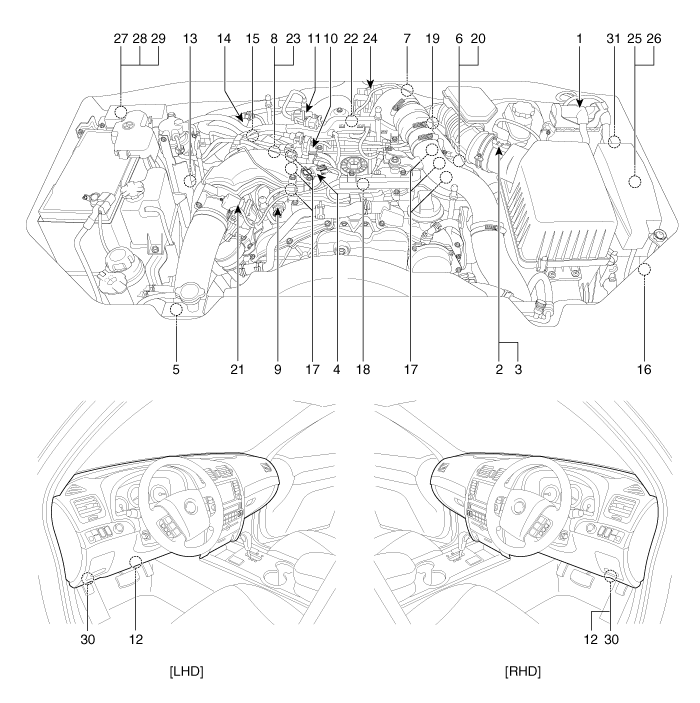

1. ECM (Engine Control Module)
2. Mass Air Flow Sensor (MAFS)
3. Intake Air Temperature Sensor (IATS) #1
4. Boost Pressure Sensor (BPS)
10. Fuel Temperature Sensor (FTS)
5. Intake Air Temperature Sensor (IATS) #2
6. Engine Coolant Temperature Sensor (ECTS)
7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS)
9. Rail Pressure Sensor (RPS)
11. Lambda Sensor
12. Accelerator Pedal Position Sensor (APS)
13. Water Sensor
14. DPF Differential Pressure Sensor (DPS)
15. Exhaust Gas Temperature Sensor (EGTS)
16. A/C Dual Pressure Switch
17. Injector
18. Fuel Pressure Regulator Valve (FPRV)
19. Rail Pressure Regulator Valve (RPRV)
20. EGR Cooler Bypass Solenoid Valve
21. Air Control Valve (ACV)
22. Variable Swirl Actuator (VSA)
23. Electric EGR Control Valve (EEGR)
24. Electric VGT Control Actuator
25. Main Relay
26. Fuel Pump Relay
31. Multi-Purpose Check Connector [20 pin]
27. PTC Heater Relay
28. Cooling Fan Relay [Low]
29. Glow Relay
30. Data Link Connector (DLC) [16 pin]
