Replacement
caution
●

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

●

Take care not to bend or scratch the trim and panels.

●

Put on gloves to protect your hands.

1.

Remove the luggage floor net (A).

2.

Remove the luggage floor box cover (B).

3.

After loosening the mounting screws, then remove the luggage floor box trim (C).

4.

Install in the reverse order of removal.

note
●

Replace any damaged clips.

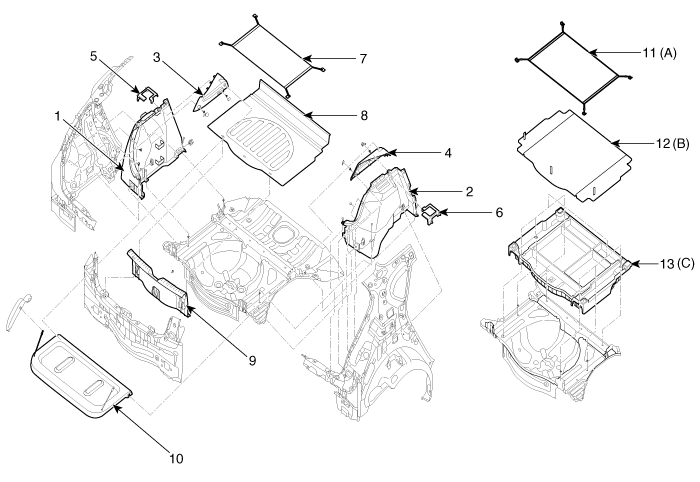

1. Luggage side trim [LH]

2. Luggage side trim [RH]

3. Rear shelf side trim [LH]

4. Rear shelf side trim [RH]

5. Rear seat belt bracket [LH]

6. Rear seat belt bracket [RH]

7. Luggage net

8. Luggage covering board

9. Rear transverse trim

10. Covering shelf

11. Luggage floor net

12. Luggage floor box cover

13. Luggage floor box trim
