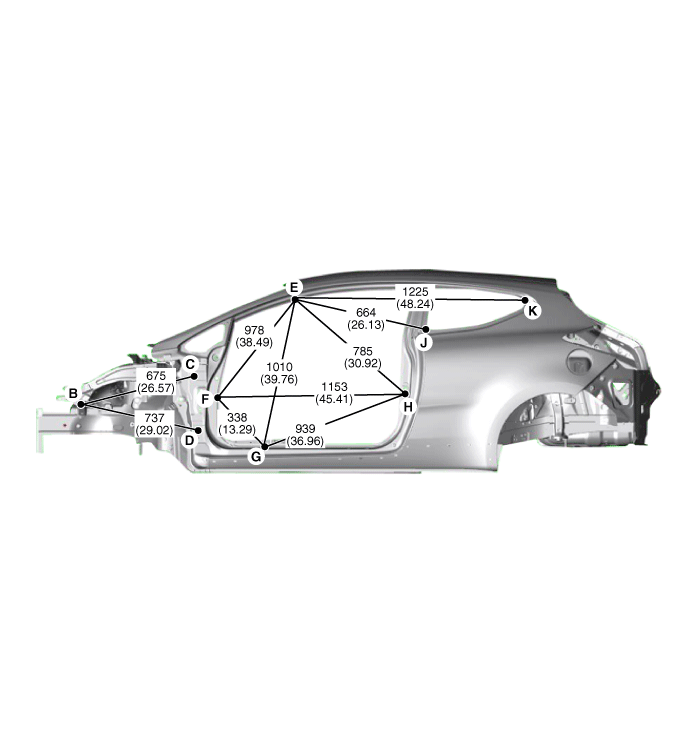

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

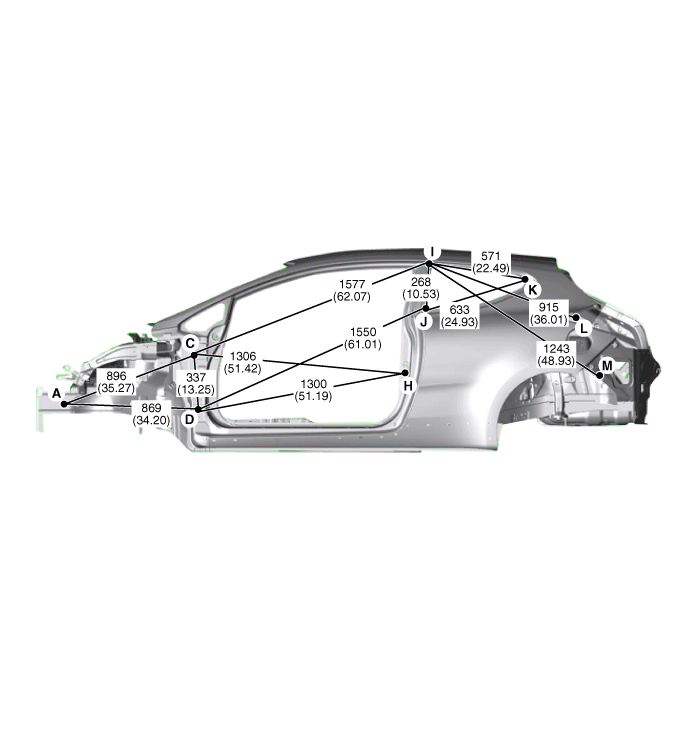

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Front side member tooling hole (Ø12)

Fender apron upper member tooling hole (Ø7)

Front door upper hinge mounting hole

(Ø13)

Front door lower hinge mounting hole

(Ø13)

Side outer panel notch

Side outer panel notch

Side outer panel notch

Front door switch mounting hole (Ø9)

Quarter fixed glass mounting notch

Quarter fixed glass mounting hole

(Ø6)

Quarter fixed glass mounting notch

Rear combination lamp mounting bracket hole (Ø6)

Rear bumper mounting hole (Ø14)
