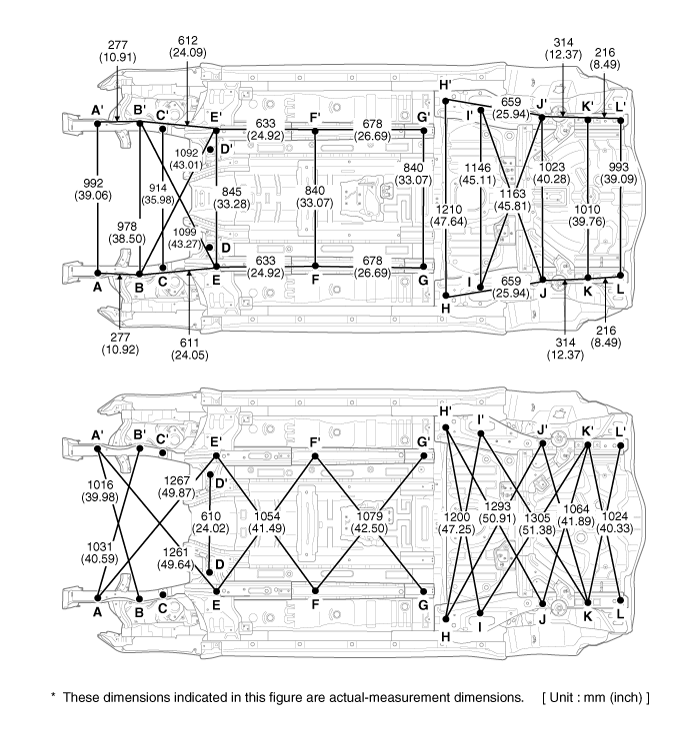

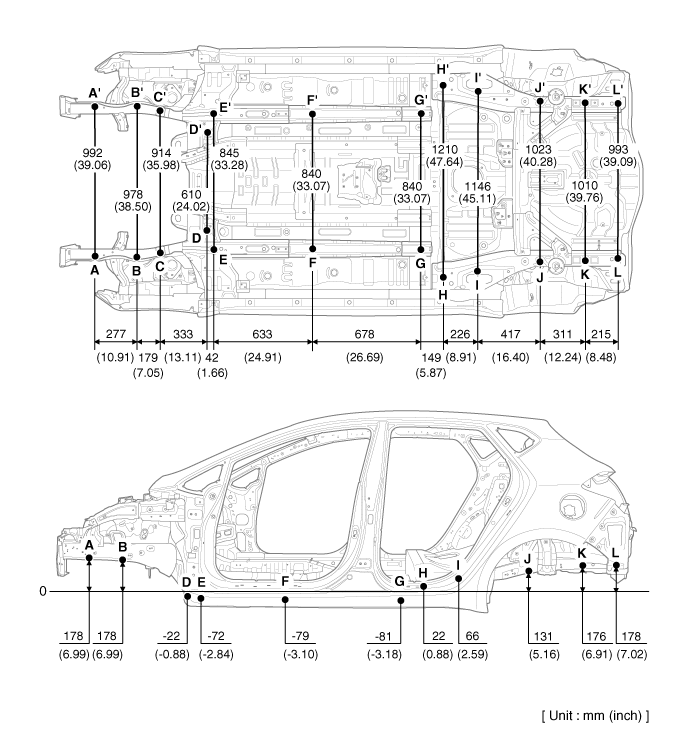

Front side member tooling hole (Ø25) | Side cover mounting hole (Ø8.6) | Side cover mounting hole (Ø10.5) |
 |  |  |
Front sub frame mounting bolt | Front sub frame mounting hole (Ø22) | Front sub frame mounting hole (Ø11) |
 |  |  |
Center floor side member tooling hole (Ø25) | Center floor side member tooling hole (Ø16) | Rear floor side member tooling hole (27X25) |
 |  |  |
Rear trailing arm mounting hole (Ø19) | Rear sub frame mounting hole (Ø18) | Rear floor side member tooling hole (Ø10) |
 |  |  |
Rear floor side member tooling hole (Ø10) | Rear floor side member tooling hole (Ø15) | Rear floor side member tooling hole (Ø15) |
| | |
Front side member tooling hole (Ø25) | Side cover mounting hole (Ø8.6) | Side cover mounting hole (Ø10.5) |
| | |
Front sub frame mounting bolt | Front sub frame mounting hole (Ø22) | Front sub frame mounting hole (Ø11) |
| | |
Center floor side member tooling hole (Ø25) | Center floor side member tooling hole (Ø16) | Rear floor side member tooling hole (27X25) |
| | |
Rear trailing arm mounting hole (Ø19) | Rear sub frame mounting hole (Ø18) | Rear floor side member tooling hole (Ø10) |
| | |
Rear floor side member tooling hole (Ø10) | Rear floor side member tooling hole (Ø15) | Rear floor side member tooling hole (Ø15) |
