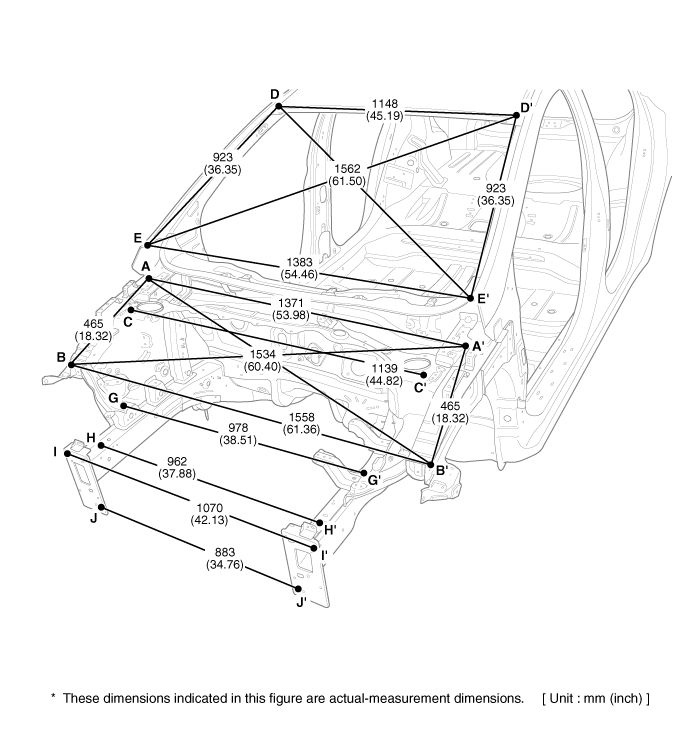

Hood hinge mounting hole (Ø9)

Fender apron upper member corner

Front shock absorber mounting hole

(Ø11)

Front pillar outer corner

Front pillar outer corner

Engine mounting bracket hole (Ø11)

Transaxle mounting hole (Ø12)

Engine mounting bracket hole (Ø15)

Transaxle mounting hole (Ø13)

Front side member tooling hole (Ø6.6)

Front side member tooling hole (Ø6.6)

Front end module mounting hole

(Ø11.5)
