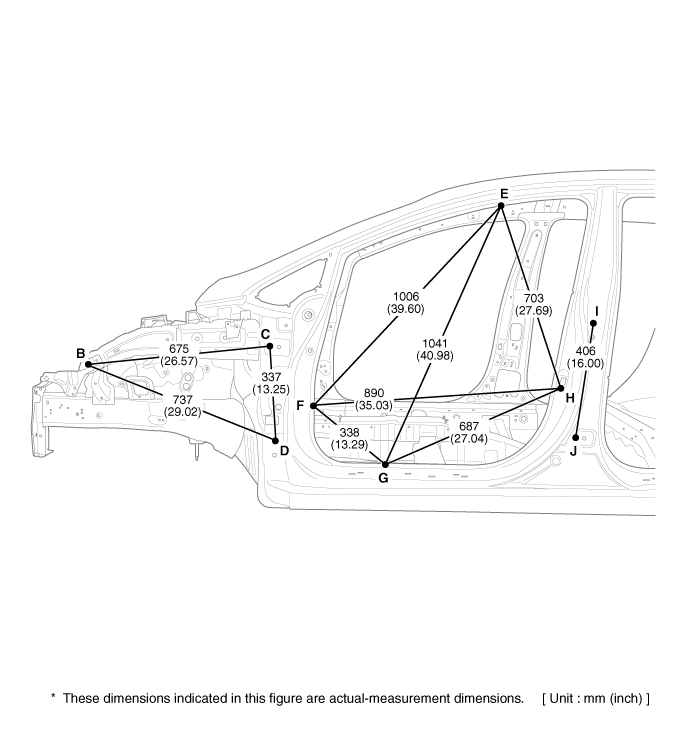

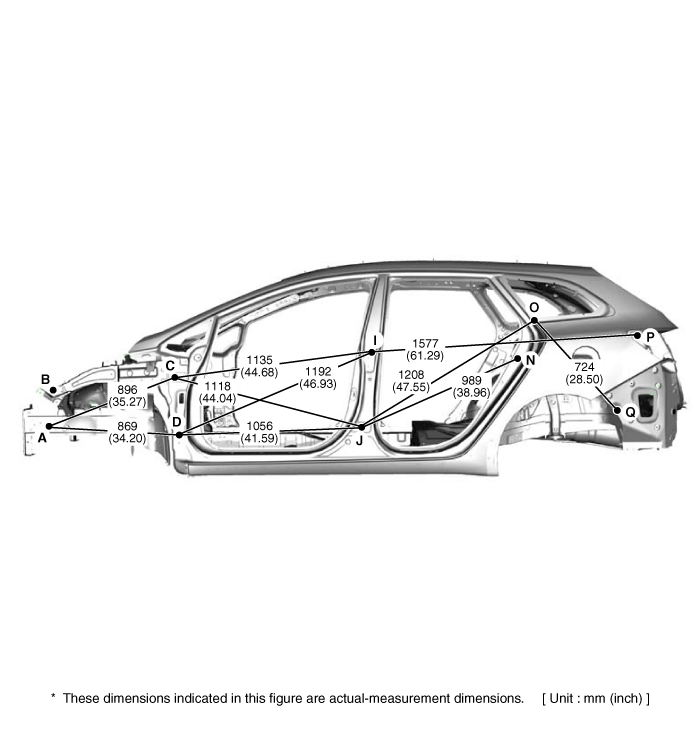

Front side member tooling hole (Ø12)

Fender apron upper member tooling hole (Ø7)

Front door upper hinge mounting hole

(Ø13)

Front door lower hinge mounting hole

(Ø13)

Side outer panel notch

Side outer panel notch

Side outer panel notch

Front door switch mounting hole (Ø9)

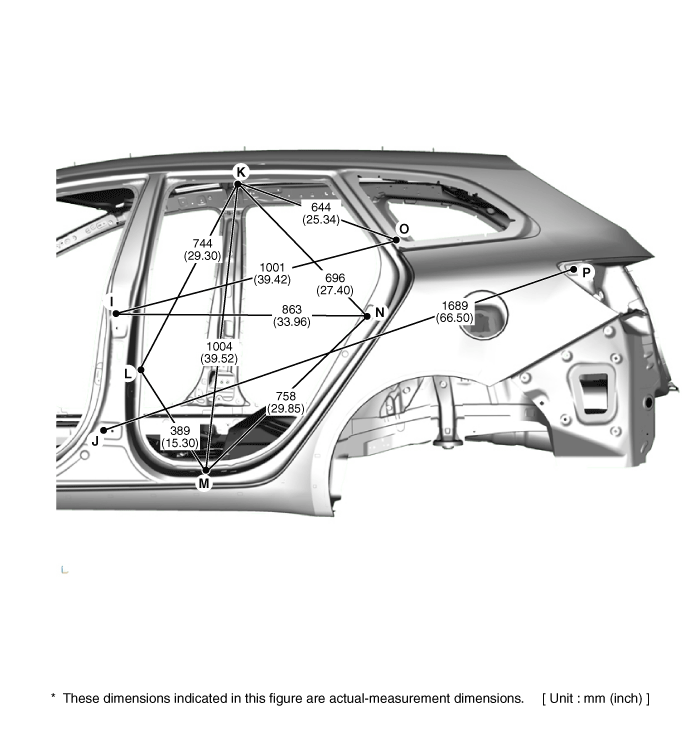

Rear door upper hinge mounting hole

(Ø13)

Rear door lower hinge mounting hole

(Ø13)

Side outer panel notch

Side outer panel notch

Side outer panel notch

Rear door switch mounting hole (Ø9)

Quarter fixed glass mounting hole

(Ø6)

Rear combination lamp mounting bracket hole (Ø6)

Rear bumper mounting hole (Ø14)
