Vehicle Parked & Ignition ON.

Connect GDS and select "DTC Analysis" mode.

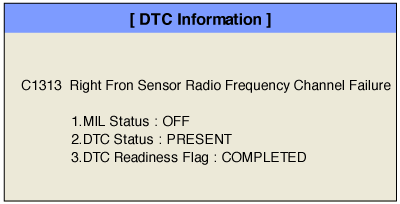

Click "DTC Status" on the "Diagnostic Trouble Codes(DTC)" menu bar to see DTC's information.

Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.

Read "DTC Status" parameter.

note

- History (Not Present) fault : DTC occurred but has been cleared.

- Present fault : DTC is occurring at present time.

Is parameter displayed "Present fault"?

	▶ Go to Next procedure.
	▶ This fault was repaired and TPMS ECU memory was not cleared. Go to "Verification of Vehicle Repair" procedure.

Connect GDS and select "Diagnostic Trouble Codes(DTC)" mode.

After driving at 25 km/h for approx. 10~20 minutes

Check that current data is correctly displayed while driving.

Measuring method : Refer to No.1 Measurement

No.1) A method of checking a sensor ID with VCI

■ Check a sensor's value out of sensor's information.

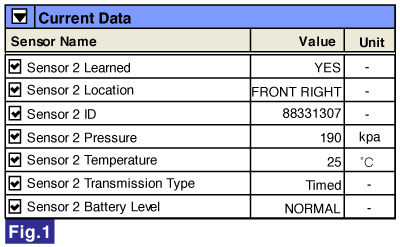

Fig.1) Data displayed by TPMS ECU

Park the vehicle on an even ground.

Set up 'GDS' with 'GDS TPMS'.

Select "Vehicle S/W Management" function.

Select the "Sensor Status" mode of "Data Treatment" item.

Position the GDS TPMS as near as possible to the tire.

(Reading may take 30~60 seconds depending on the sensor's characteristics.)

10.

Check a sensor's value out of sensor's information.

■ Measuring method : Refer to No.2 Measurement

No.2) A method of checking a sensor ID with TPMS Exciter

Fig.2) Data displayed by GDS TPMS(Exciter)

11.

Is the Fig.1's sensor value same with the Fig.2's ?

▶ Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet.

▶ Go to "Verification of vehicle Repair" procedure.

▶ If TPMS Sensor ID is abnormal, register ID and then confirm the sensor ID status.

▶ If the pressure of sensor is abnormal, compare values measured by the pressure gauge to the values from GDS.

▶ Check the factors which interfere with a radio signal(RF) of the TPMS sensor.

▶ Substitute with a known-good TPMS Sensor and check for proper operation.

▶ If the problem is corrected, replace TPMS Sensor and then go to "Verification of Vehicle Repair" procedure.

▶ After replacing with a known-good TPMS Sensor, you must do the 'Register Sensor' at the "Vehicle S/W Management"mode by using GDS and GDS TPMS. and then go to "Verification of Vehicle Repair" procedure.
