13664428

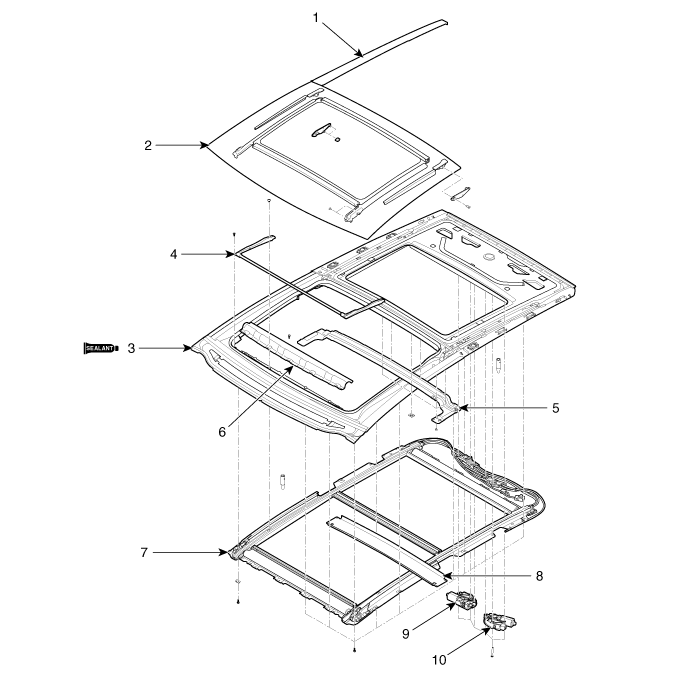

Components (1)

1. Roof side molding

2. Movable glass

3. Panoramaroof frame assembly

4. Wind deflector

5. Impact cross memeer upper assembly

6. Front cover

7. Mechanism assembly

8. Impact cross memeer lower assembly

9. Roller blind motor assembly

10. Movable glass motor assembly

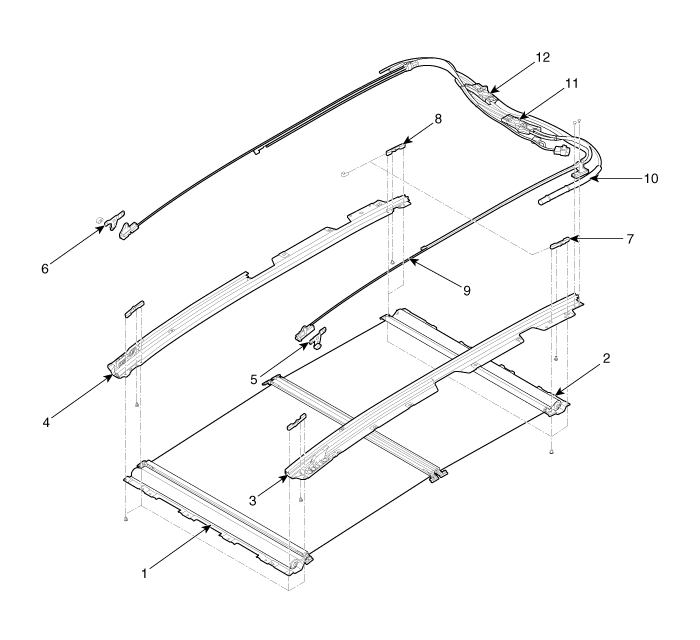

Components (2)

1. Front roller blind assembly

2. Rear roller blind assembly

3. Mechanism rail [LH]

4. Mechanism rail [RH]

5. Drive arm assembly [LH]

6. Drive arm assembly [RH]

7. Rear roller blind deflection [LH]

8. Rear roller blind deflection [RH]

9. Cable assembly

10. Harness assembly

11. Glass drive unit

12. Roller blind drive unit
