11.
Disconnect the ECM mirror connector (A).
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Remove the rear seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
Remove the front pillar trim.
(Refer to Interior Trim - "Front Pillar Trim")
Remove the canter pillar upper trim.
(Refer to Interior Trim - "Center Pillar Trim")
Remove the luggage side trim.
(Refer to Interior Trim - "Luggage Side Trim")
Remove the rear pillar trim.
(Refer to Interior Trim - "Rear Pillar Trim")
Remove the sunvisor and retainer.
(Refer to Roof Trim - "Sunvisor")
Remove the assist handle.
(Refer to Roof Trim - "Assist Handle")
Remove the overhead console lamp.
<a href="content.asp?vehicletype=Passenger&mfrcode=KM&area=KME&langcode=ENG&modelid=JD12&modelyr=2013&mmctype=imm&mmcid=1&group=SHOP&pdftype=&cat1=2013+%3E+G+1%2E6+MPI&ec=&firstnodedesc=Body+Electrical+System&sitinfolist=92%5E9249%5E92490130%5Enone%5E801%5E4%5EENG%5EKM%5EJD12%5E2013%5Eimm%5E1%5Enone%5Enone%5Enone%5ESHOP%5E%2492%5E9249%5E92490130%5Enone%5E801%5E1%5EENG%5EKM%5EJD12%5E2013%5Eimm%5E1%5Enone%5Enone%5Enone%5ESHOP%5E%2492%5E9249%5E92490130%5Enone%5E801%5E8%5EENG%5EKM%5EJD12%5E2013%5Eimm%5E1%5Enone%5Enone%5Enone%5ESHOP%5E%24"target="_blank">(Refer to Body Electrical System - "Overhead Console Lamp")</a>
Remove the room lamp. [General type]
<a href="content.asp?vehicletype=Passenger&mfrcode=KM&area=KME&langcode=ENG&modelid=JD12&modelyr=2013&mmctype=imm&mmcid=1&group=SHOP&pdftype=&cat1=2013+%3E+G+1%2E6+MPI&ec=&firstnodedesc=Body+Electrical+System&sitinfolist=92%5E9249%5E92490120%5Enone%5E801%5E4%5EENG%5EKM%5EJD12%5E2013%5Eimm%5E1%5Enone%5Enone%5Enone%5ESHOP%5E%2492%5E9249%5E92490120%5Enone%5E801%5E1%5EENG%5EKM%5EJD12%5E2013%5Eimm%5E1%5Enone%5Enone%5Enone%5ESHOP%5E%2492%5E9249%5E92490120%5Enone%5E801%5E8%5EENG%5EKM%5EJD12%5E2013%5Eimm%5E1%5Enone%5Enone%5Enone%5ESHOP%5E%24"target="_blank">(Refer to Body Electrical System - "Room Lamp")</a>
Remove the ECM mirror cover (B).
Disconnect the ECM mirror connector (A).
Remove the auto defog sensor cover (B).
Disconnect the auto defog sensor connector (A).
Remove the rain sensor cover (B).
Disconnect the rain sensor connector (A).
Disconnect the roof trim main connector (A) and the mounting clips in the front pillar.
Disconnect the roof antenna connector (A) and the mounting clips in the front pillar.
Disconnect the roof antenna connector (A).
Disconnect the panoramaroof motor connector (A).

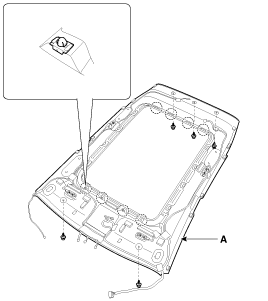

Detach the clips, then remove the roof trim assembly (A).
Remove the vanity lamp.
<a href="content.asp?vehicletype=Passenger&mfrcode=KM&area=KME&langcode=ENG&modelid=JD12&modelyr=2013&mmctype=imm&mmcid=1&group=SHOP&pdftype=&cat1=2013+%3E+G+1%2E6+MPI&ec=&firstnodedesc=Body+Electrical+System&sitinfolist=92%5E9249%5E92490120%5Enone%5E801%5E4%5EENG%5EKM%5EJD12%5E2013%5Eimm%5E1%5Enone%5Enone%5Enone%5ESHOP%5E%2492%5E9249%5E92490120%5Enone%5E801%5E1%5EENG%5EKM%5EJD12%5E2013%5Eimm%5E1%5Enone%5Enone%5Enone%5ESHOP%5E%2492%5E9249%5E92490120%5Enone%5E801%5E8%5EENG%5EKM%5EJD12%5E2013%5Eimm%5E1%5Enone%5Enone%5Enone%5ESHOP%5E%24"target="_blank">(Refer to Body Electrical System - "Room Lamp")</a>
Remove the hands free mic.
<a href="content.asp?vehicletype=Passenger&mfrcode=KM&area=KME&langcode=ENG&modelid=JD12&modelyr=2013&mmctype=imm&mmcid=1&group=SHOP&pdftype=&cat1=2013+%3E+G+1%2E6+MPI&ec=&firstnodedesc=Body+Electrical+System&sitinfolist=92%5E9245%5E92450400%5Enone%5E801%5E4%5EENG%5EKM%5EJD12%5E2013%5Eimm%5E1%5Enone%5Enone%5Enone%5ESHOP%5E%24"target="_blank">(Refer to Body Electrical System - "Hands Free Mic")</a>
Remove roof trim wiring harness (A) from the roof trim (B).
Take care not to damage the roof trim wiring harness (A) when removing.
Apply the hot melt continuously when installing the roof trim wiring harness (A) on the roof trim (B) using the hot melt gun tool.
Put anti-noise pad (C) on roof trim (B) to prevent the noise.
Install in the reverse order of removal.
Make sure the connector is plugged in properly.
Replace any damaged clips.
