Replacement

[5Door]

caution

●

Put on gloves to protect your hands.

note

●

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

●

Take care not to bend or scratch the trim and panels.

1.

Remove the rear wheel house trim.

(Refer to Interior Trim - "Rear Wheel House Trim")

2.

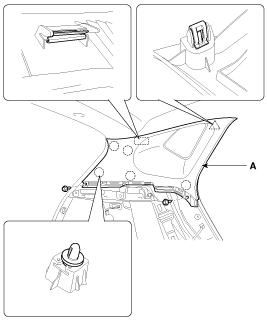

After loosening the mounting bolts, then remove the rear pillar trim (A).

3.

Install in the reverse order of removal.

caution

●

Replace any damaged clips.

[3Door]

caution

●

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

●

Take care not to bend or scratch the trim and panels.

●

Put on gloves to protect your hands.

1.

Remove the rear inner outer trim.

(Refer to Interior Trim - "Center Pillar Trim")

2.

After loosening the mounting bolts, then remove the rear pillar trim (A).

3.

Install in the reverse order of removal.

caution

●

Replace any damaged clips.
