Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the luggage floor net (A).
Remove the luggage floor box cover (B).
After loosening the mounting screws, then remove the luggage floor box trim (C).
Install in the reverse order of removal.
Replace any damaged clips.

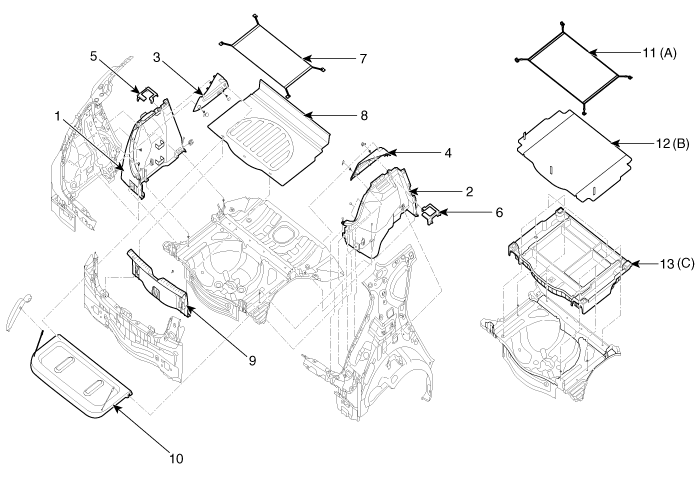

1. Luggage side trim [LH] 2. Luggage side trim [RH] 3. Rear shelf side trim [LH] 4. Rear shelf side trim [RH] 5. Rear seat belt bracket [LH] | 6. Rear seat belt bracket [RH] 7. Luggage net 8. Luggage covering board 9. Rear transverse trim 10. Covering shelf | 11. Luggage floor net 12. Luggage floor box cover 13. Luggage floor box trim |
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.
Remove the luggage floor net (A).
Remove the luggage floor box cover (B).
After loosening the mounting screws, then remove the luggage floor box trim (C).
Installation is the reverse of removal.
Replace any damaged clips.

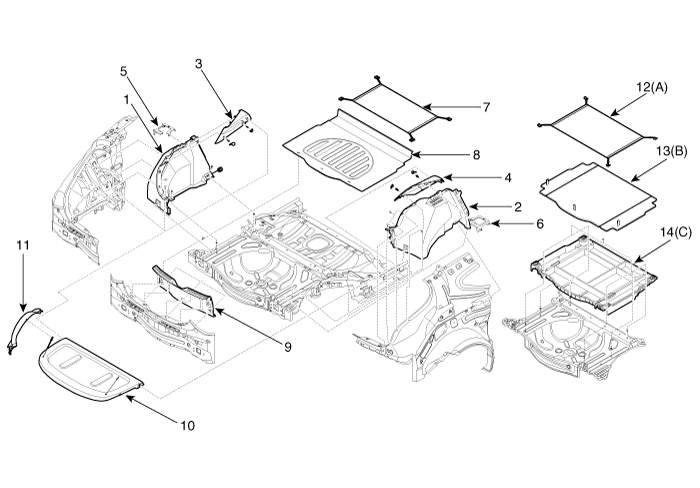

1. Luggage side trim [LH] 2. Luggage side trim [RH] 3. Rear shelf side trim [LH] 4. Rear shelf side trim [RH] 5. Rear seat belt bracket [LH] 6. Rear seat belt bracket [RH] 7. Luggage net | 8. Luggage covering board 9. Rear transverse trim 10. Covering shelf 11. Tail gate side trim 12. Luggage floor net 13. Luggage floor box cover 14. Luggage floor box trim |
