10.
Install in the reverse order of removal.
caution
●
Replace any damaged clips.

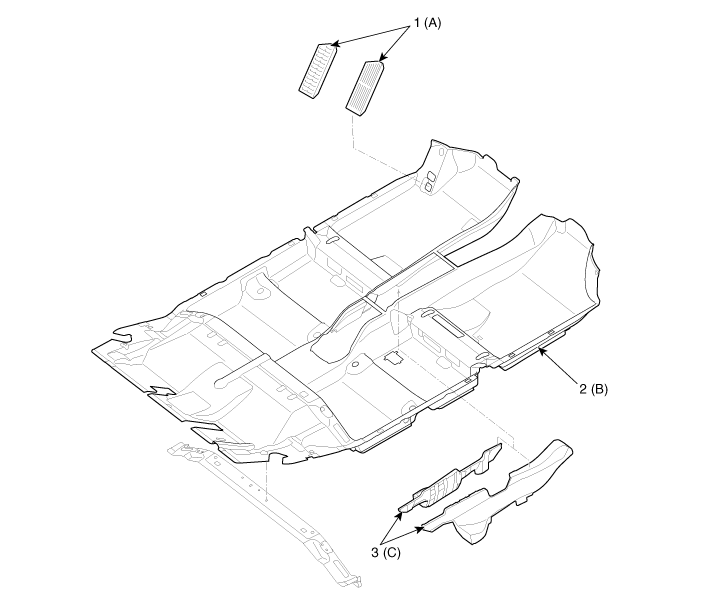

1. Foot rest 2. Floor carpet assembly | 3. Tunnel pad |
Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
Remove the rear seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
Remove the cowl side trim.
(Refer to Interior Trim - "Cowl Side Trim")
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
Remove the luggage side trim.
(Refer to Interior Trim - "Luggage Side Trim")
Remove the foot rest (A).
Remove the floor carpet assembly (B).
Remove the tunnel pad (C).
Install in the reverse order of removal.
Replace any damaged clips.
1. Foot rest 2. Floor carpet assembly | 3. Tunnel pad |
