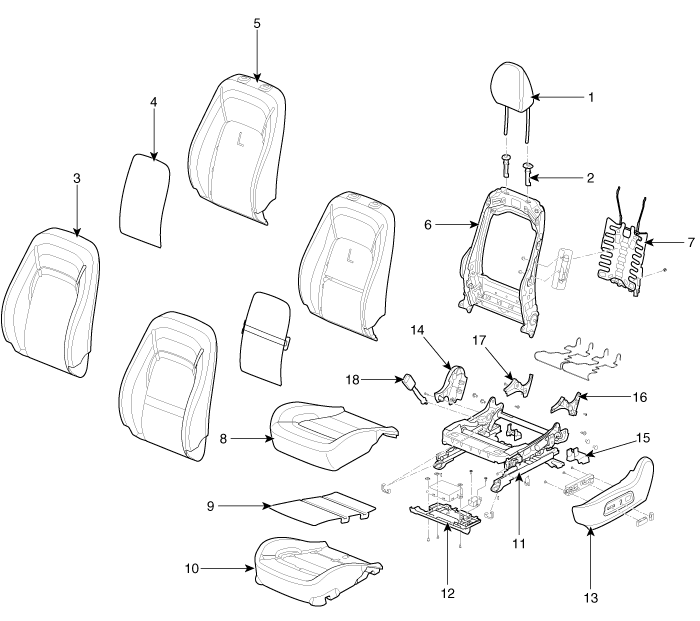

Components (1)
[5Door]

1. Front seat headrest

2. Front seat headrest guide

3. Front seat back cover

4. Front seat back warmer

5. Front seat back pad

6. Front seat back frame

7. Front seat lumber support

8. Front seat cushion cover

9. Front seat cushion warmer

10. Front seat cushion pad

11. Front seat cushion frame

12. Front extension front cover

13. Front seat shield outer cover

14. Front seat shield inner cover

15. Foot mounting cover

16. Front inside cover [LH]

17. Front inside cover [RH]

18. Front seat belt buckle

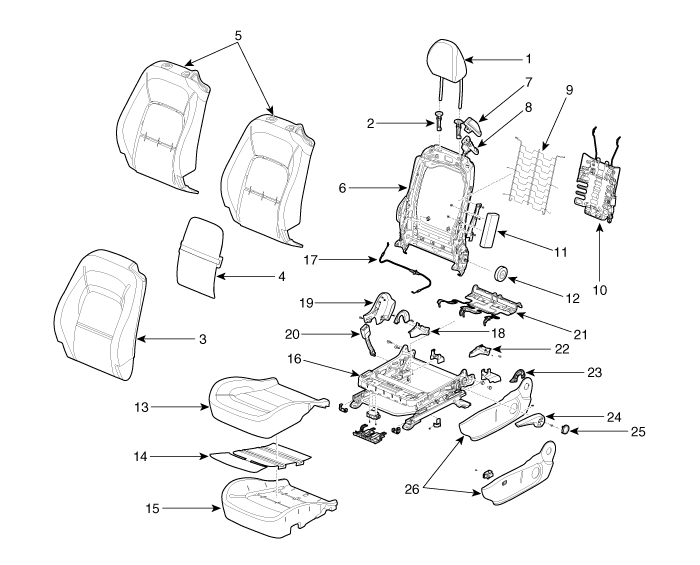

Components (2)
[3Door]

1. Front seat headrest

2. Front seat headrest guide

3. Front seat back cover

4. Front seat back warmer

5. Front seat back pad

6. Front seat back frame

7. Release handle upper assembly

8. Lever cable assembly

9. Suspension mat

10. Front seat power lumber support

11. Side airbag

12. Handwheel recliner

13. Front seat cushion cover

14. Front seat cushion warmer

15. Front seat cushion pad

16. Front seat cushion frame

17. Track bowden cable

18. Front inner cover [RH]

19. Front seat shield inner cover

20. Front seat belt buckle

21. FSC overmolded cushion mat

22. Front inner cover [LH]

23. Front outer recliner cover

24. Height adjust lever

25. Height adjust lever cap

26. Front seat shield outer cover
